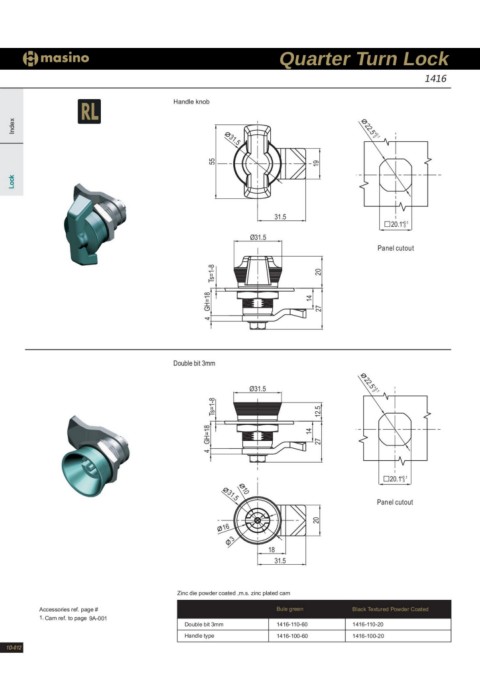

Quarter Turn Lock
1416

Index Handle knob 22.5+0.01
31.5

55 19

Lock

31.5 20.1+00.1
Ø31.5 Panel cutout

4 GH=18 Ts=1-8 14
27 20

Double bit 3mm

22.5+0.01Ø31.5
10
4 GH=18 Ts=1-8 14
27 12.5

31.5 20 20.1+00.1
Panel cutout
16
3 Black Textured Powder Coated
18 1416-110-20
31.5 1416-100-20

Zinc die powder coated ,m.s. zinc plated cam

Accessories ref. page # Bule green
1. Cam ref. to page 9A-001
1D-012 Double bit 3mm 1416-110-60
Handle type 1416-100-60
