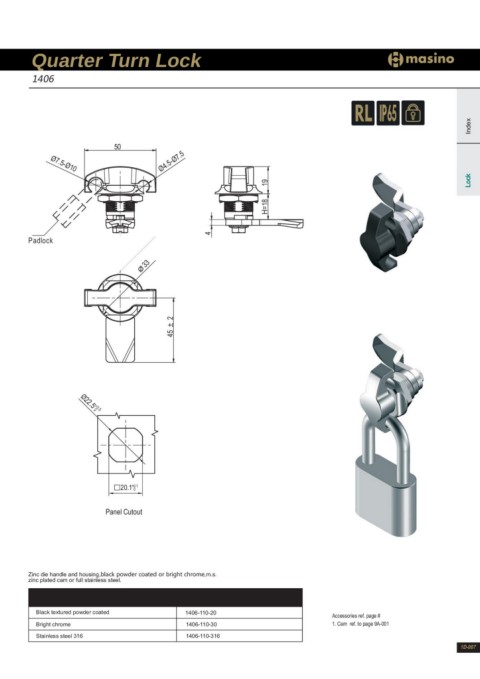

Quarter Turn Lock Index
1406 H=18 19 Lock
Ø7.5-Ø10 50 Ø4.5-Ø7.5
Padlock
33
4
45 ± 2
Ø22.5 0+0.5
20.1+00.1
Panel Cutout
Zinc die handle and housing,black powder coated or bright chrome,m.s.
zinc plated cam or full stainless steel.
Black textured powder coated 1406-110-20 Accessories ref. page #
Bright chrome 1406-110-30 1. Cam ref. to page 9A-001
Stainless steel 316 1406-110-316
1D-007
