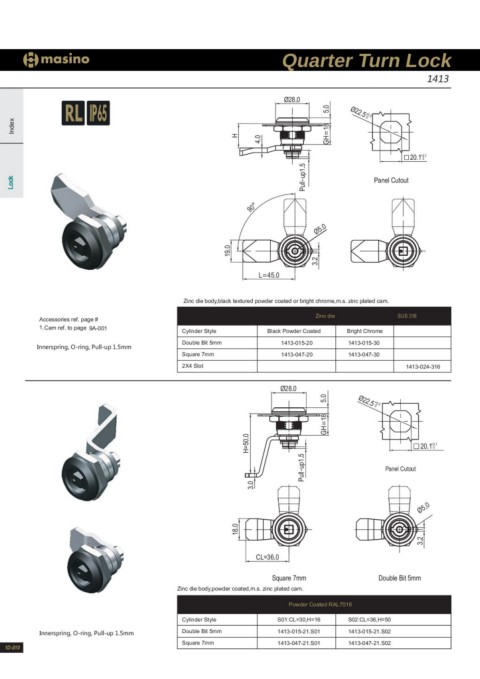

Quarter Turn Lock
1413

Ø28.0 GH=18 5.0 Ø22.5 +00.5

Index H
4.0

Lock 20.1+00.1Pull-up1.5
Panel Cutout

90°
Ø5.0

19.0
3.2

L=45.0

Zinc die body,black textured powder coated or bright chrome,m.s. zinc plated cam.

Accessories ref. page # Zinc die SUS 316
1.Cam ref. to page 9A-001
Innerspring, O-ring, Pull-up 1.5mm Cylinder Style Black Powder Coated Bright Chrome
Double Bit 5mm 1413-015-20 1413-015-30
Square 7mm 1413-047-20 1413-047-30
2X4 Slot
1413-024-316

Ø28.0 GH=18 5.0 Ø22.5 0+0.5

H=50.0 20.1+00.1
Panel Cutout
3.0 Pull-up1.5
Ø5.0

18.0

3.2

CL=36.0

Square 7mm Double Bit 5mm

Zinc die body,powder coated,m.s. zinc plated cam.

Powder Coated RAL7016

Innerspring, O-ring, Pull-up 1.5mm Cylinder Style S01:CL=30,H=16 S02:CL=36,H=50
Double Bit 5mm 1413-015-21.S01 1413-015-21.S02
1D-010 Square 7mm 1413-047-21.S01 1413-047-21.S02
