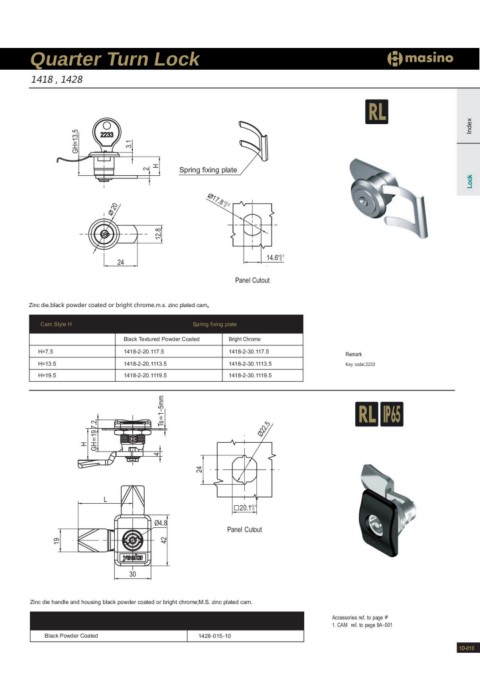

Quarter Turn Lock

1418 , 1428

GH=13.5 Index
3.1
Spring fixing plate
2 17.8 +00.2
H

Lock

20
12.8

24 14.6+00.1
Panel Cutout

Zinc die,black powder coated or bright chrome,m.s. zinc plated cam。

Cam Style H Spring fixing plate

H=7.5 Black Textured Powder Coated Bright Chrome Remark
H=13.5 1418-2-20.117.5 1418-2-30.117.5 Key code:2233
H=19.5 1418-2-20.1113.5 1418-2-30.1113.5
1418-2-20.1119.5 1418-2-30.1119.5

H Ts=1-5mm Ø22.5
GH=19 7.2

4

24

L 20.1+00.1
Ø4.8 Panel Cutout

19
42

30

Zinc die handle and housing black powder coated or bright chrome;M.S. zinc plated cam.

Accessories ref. to page #
1. CAM ref. to page 9A-001

Black Powder Coated 1428-015-10

1D-015
