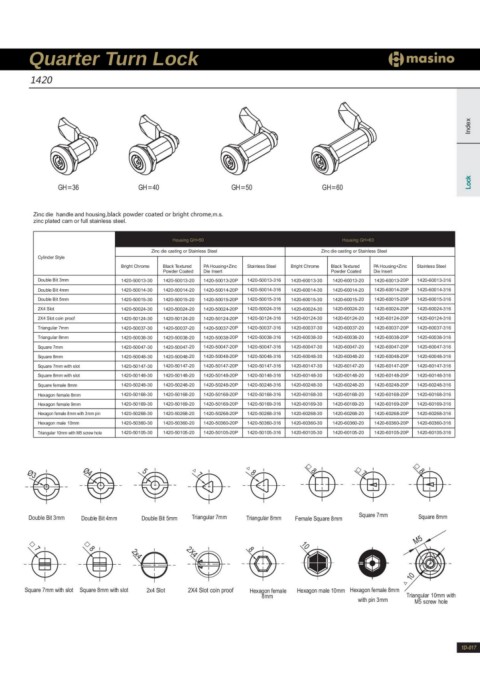

Quarter Turn Lock

1420

Index

GH=36 GH=40 GH=50 GH=60 Lock

Zinc die handle and housing,black powder coated or bright chrome,m.s.
zinc plated cam or full stainless steel.

Cylinder Style Housing GH=50 Housing GH=60
Zinc die casting or Stainless Steel Zinc die casting or Stainless Steel
Double Bit 3mm
Double Bit 4mm Bright Chrome Black Textured PA Housing+Zinc Stainless Steel Bright Chrome Black Textured PA Housing+Zinc Stainless Steel
Double Bit 5mm Powder Coated Die Insert Powder Coated Die Insert
2X4 Slot 1420-50013-30 1420-50013-20 1420-50013-20P 1420-50013-316 1420-60013-30 1420-60013-20 1420-60013-20P 1420-60013-316
2X4 Slot coin proof 1420-50014-30 1420-50014-20 1420-50014-20P 1420-50014-316 1420-60014-30 1420-60014-20 1420-60014-20P 1420-60014-316
Triangular 7mm 1420-50015-30 1420-50015-20 1420-50015-20P 1420-50015-316 1420-60015-30 1420-60015-20 1420-60015-20P 1420-60015-316
Triangular 8mm 1420-50024-30 1420-50024-20 1420-50024-20P 1420-50024-316 1420-60024-30 1420-60024-20 1420-60024-20P 1420-60024-316
Square 7mm 1420-50124-30 1420-50124-20 1420-50124-20P 1420-50124-316 1420-60124-30 1420-60124-20 1420-60124-20P 1420-60124-316
Square 8mm 1420-50037-30 1420-50037-20 1420-50037-20P 1420-50037-316 1420-60037-30 1420-60037-20 1420-60037-20P 1420-60037-316
Square 7mm with slot 1420-50038-30 1420-50038-20 1420-50038-20P 1420-50038-316 1420-60038-30 1420-60038-20 1420-60038-20P 1420-60038-316
Square 8mm with slot 1420-50047-30 1420-50047-20 1420-50047-20P 1420-50047-316 1420-60047-30 1420-60047-20 1420-60047-20P 1420-60047-316
Square female 8mm 1420-50048-30 1420-50048-20 1420-50048-20P 1420-50048-316 1420-60048-30 1420-60048-20 1420-60048-20P 1420-60048-316
Hexagon female 8mm 1420-50147-30 1420-50147-20 1420-50147-20P 1420-50147-316 1420-60147-30 1420-60147-20 1420-60147-20P 1420-60147-316
Hexagon female 9mm 1420-50148-30 1420-50148-20 1420-50148-20P 1420-50148-316 1420-60148-30 1420-60148-20 1420-60148-20P 1420-60148-316
Hexagon female 8mm with 3mm pin 1420-50248-30 1420-50248-20 1420-50248-20P 1420-50248-316 1420-60248-30 1420-60248-20 1420-60248-20P 1420-60248-316
Hexagon male 10mm 1420-50168-30 1420-50168-20 1420-50168-20P 1420-50168-316 1420-60168-30 1420-60168-20 1420-60168-20P 1420-60168-316
Triangular 10mm with M5 screw hole 1420-50169-30 1420-50169-20 1420-50169-20P 1420-50169-316 1420-60169-30 1420-60169-20 1420-60169-20P 1420-60169-316
1420-50268-30 1420-50268-20 1420-50268-20P 1420-50268-316 1420-60268-30 1420-60268-20 1420-60268-20P 1420-60268-316
1420-50360-30 1420-50360-20 1420-50360-20P 1420-50360-316 1420-60360-30 1420-60360-20 1420-60360-20P 1420-60360-316
1420-50105-30 1420-50105-20 1420-50105-20P 1420-50105-316 1420-60105-30 1420-60105-20 1420-60105-20P 1420-60105-316

Ø3 Ø4 5 △7 △8 □7
□8
Double Bit 3mm Triangular 7mm Square 7mm Square 8mm
□ 8 10
8 M5

2x4
□8
□7
Double Bit 4mm Double Bit 5mm Triangular 8mm Female Square 8mm

2X4

2X4 Slot coin proof △ 10
Square 7mm with slot Square 8mm with slot 2x4 Slot Hexagon male 10mm Hexagon female 8mm
Hexag8omnmfemale with pin 3mm TriaMng5uslacrre1w0mhmolewith
