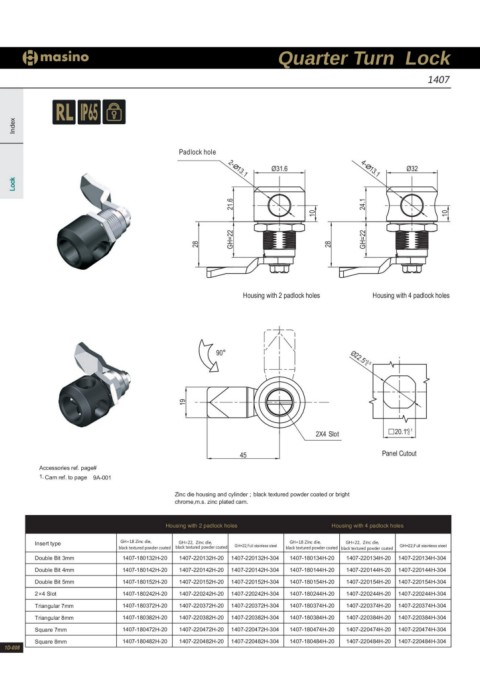

Quarter Turn Lock
1407

Index

Padlock hole 2- 13.1 4- 13.1

Ø31.6 Ø32

Lock

28
GH=22 21.6

10
28
GH=22 24.1

10

Housing with 2 padlock holes Housing with 4 padlock holes

90° Ø22.5 0+0.5

19

2X4 Slot 20.1+00.1

45 Panel Cutout

Accessories ref. page#
1. Cam ref. to page 9A-001

Zinc die housing and cylinder；black textured powder coated or bright
chrome,m.s. zinc plated cam.

Housing with 2 padlock holes Housing with 4 padlock holes

Insert type GH=18 Zinc die, GH=22, Zinc die, GH=22,Full stainless steel GH=18 Zinc die, GH=22, Zinc die, GH=22,Full stainless steel
black textured powder coated black textured powder coated
Double Bit 3mm black textured powder coated black textured powder coated 1407-220134H-304
Double Bit 4mm
Double Bit 5mm 1407-180132H-20 1407-220132H-20 1407-220132H-304 1407-180134H-20 1407-220134H-20
2×4 Slot
Triangular 7mm 1407-180142H-20 1407-220142H-20 1407-220142H-304 1407-180144H-20 1407-220144H-20 1407-220144H-304
Triangular 8mm
Square 7mm 1407-180152H-20 1407-220152H-20 1407-220152H-304 1407-180154H-20 1407-220154H-20 1407-220154H-304
Square 8mm
1407-180242H-20 1407-220242H-20 1407-220242H-304 1407-180244H-20 1407-220244H-20 1407-220244H-304

1407-180372H-20 1407-220372H-20 1407-220372H-304 1407-180374H-20 1407-220374H-20 1407-220374H-304

1407-180382H-20 1407-220382H-20 1407-220382H-304 1407-180384H-20 1407-220384H-20 1407-220384H-304

1407-180472H-20 1407-220472H-20 1407-220472H-304 1407-180474H-20 1407-220474H-20 1407-220474H-304

1D-008 1407-180482H-20 1407-220482H-20 1407-220482H-304 1407-180484H-20 1407-220484H-20 1407-220484H-304
