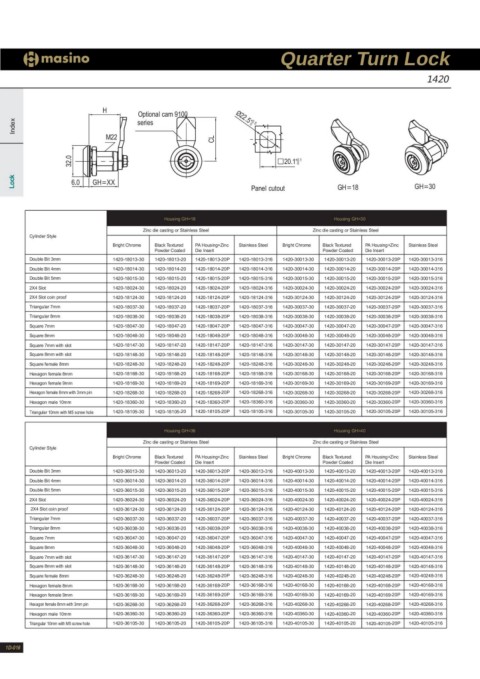

Index H Optional cam 9100 Quarter Turn Lock
M22 series 1420

Ø22.5 0+0.5

CL

32.0 20.1+00.1
Panel cutout
Lock 6.0 GH=XX GH=18 GH=30

Cylinder Style Housing GH=18 Housing GH=30
Zinc die casting or Stainless Steel Zinc die casting or Stainless Steel
Double Bit 3mm
Double Bit 4mm Bright Chrome Black Textured PA Housing+Zinc Stainless Steel Bright Chrome Black Textured PA Housing+Zinc Stainless Steel
Double Bit 5mm Powder Coated Die Insert Powder Coated Die Insert
2X4 Slot 1420-18013-30 1420-18013-20 1420-18013-20P 1420-18013-316 1420-30013-30 1420-30013-20 1420-30013-20P 1420-30013-316
2X4 Slot coin proof 1420-18014-30 1420-18014-20 1420-18014-20P 1420-18014-316 1420-30014-30 1420-30014-20 1420-30014-20P 1420-30014-316
Triangular 7mm 1420-18015-30 1420-18015-20 1420-18015-20P 1420-18015-316 1420-30015-30 1420-30015-20 1420-30015-20P 1420-30015-316
Triangular 8mm 1420-18024-30 1420-18024-20 1420-18024-20P 1420-18024-316 1420-30024-30 1420-30024-20 1420-30024-20P 1420-30024-316
Square 7mm 1420-18124-30 1420-18124-20 1420-18124-20P 1420-18124-316 1420-30124-30 1420-30124-20 1420-30124-20P 1420-30124-316
Square 8mm 1420-18037-30 1420-18037-20 1420-18037-20P 1420-18037-316 1420-30037-30 1420-30037-20 1420-30037-20P 1420-30037-316
Square 7mm with slot 1420-18038-30 1420-18038-20 1420-18038-20P 1420-18038-316 1420-30038-30 1420-30038-20 1420-30038-20P 1420-30038-316
Square 8mm with slot 1420-18047-30 1420-18047-20 1420-18047-20P 1420-18047-316 1420-30047-30 1420-30047-20 1420-30047-20P 1420-30047-316
Square female 8mm 1420-18048-30 1420-18048-20 1420-18048-20P 1420-18048-316 1420-30048-30 1420-30048-20 1420-30048-20P 1420-30048-316
Hexagon female 8mm 1420-18147-30 1420-18147-20 1420-18147-20P 1420-18147-316 1420-30147-30 1420-30147-20 1420-30147-20P 1420-30147-316
Hexagon female 9mm 1420-18148-30 1420-18148-20 1420-18148-20P 1420-18148-316 1420-30148-30 1420-30148-20 1420-30148-20P 1420-30148-316
Hexagon female 8mm with 3mm pin 1420-18248-30 1420-18248-20 1420-18248-20P 1420-18248-316 1420-30248-30 1420-30248-20 1420-30248-20P 1420-30248-316
Hexagon male 10mm 1420-18168-30 1420-18168-20 1420-18168-20P 1420-18168-316 1420-30168-30 1420-30168-20 1420-30168-20P 1420-30168-316
Triangular 10mm with M5 screw hole 1420-18169-30 1420-18169-20 1420-18169-20P 1420-18169-316 1420-30169-30 1420-30169-20 1420-30169-20P 1420-30169-316
1420-18268-30 1420-18268-20 1420-18268-20P 1420-18268-316 1420-30268-30 1420-30268-20 1420-30268-20P 1420-30268-316
Cylinder Style 1420-18360-30 1420-18360-20 1420-18360-20P 1420-18360-316 1420-30360-30 1420-30360-20 1420-30360-20P 1420-30360-316
1420-18105-30 1420-18105-20 1420-18105-20P 1420-18105-316 1420-30105-30 1420-30105-20 1420-30105-20P 1420-30105-316
Double Bit 3mm
Double Bit 4mm Housing GH=36 Housing GH=40
Double Bit 5mm Zinc die casting or Stainless Steel Zinc die casting or Stainless Steel
2X4 Slot
2X4 Slot coin proof Bright Chrome Black Textured PA Housing+Zinc Stainless Steel Bright Chrome Black Textured PA Housing+Zinc Stainless Steel
Triangular 7mm Powder Coated Die Insert Powder Coated Die Insert
Triangular 8mm 1420-36013-30 1420-36013-20 1420-36013-20P 1420-36013-316 1420-40013-30 1420-40013-20 1420-40013-20P 1420-40013-316
Square 7mm 1420-36014-30 1420-36014-20 1420-36014-20P 1420-36014-316 1420-40014-30 1420-40014-20 1420-40014-20P 1420-40014-316
Square 8mm 1420-36015-30 1420-36015-20 1420-36015-20P 1420-36015-316 1420-40015-30 1420-40015-20 1420-40015-20P 1420-40015-316
Square 7mm with slot 1420-36024-30 1420-36024-20 1420-36024-20P 1420-36024-316 1420-40024-30 1420-40024-20 1420-40024-20P 1420-40024-316
Square 8mm with slot 1420-36124-30 1420-36124-20 1420-36124-20P 1420-36124-316 1420-40124-30 1420-40124-20 1420-40124-20P 1420-40124-316
Square female 8mm 1420-36037-30 1420-36037-20 1420-36037-20P 1420-36037-316 1420-40037-30 1420-40037-20 1420-40037-20P 1420-40037-316
Hexagon female 8mm 1420-36038-30 1420-36038-20 1420-36038-20P 1420-36038-316 1420-40038-30 1420-40038-20 1420-40038-20P 1420-40038-316
Hexagon female 9mm 1420-36047-30 1420-36047-20 1420-36047-20P 1420-36047-316 1420-40047-30 1420-40047-20 1420-40047-20P 1420-40047-316
Hexagon female 8mm with 3mm pin 1420-36048-30 1420-36048-20 1420-36048-20P 1420-36048-316 1420-40048-30 1420-40048-20 1420-40048-20P 1420-40048-316
Hexagon male 10mm 1420-36147-30 1420-36147-20 1420-36147-20P 1420-36147-316 1420-40147-30 1420-40147-20 1420-40147-20P 1420-40147-316
Triangular 10mm with M5 screw hole 1420-36148-30 1420-36148-20 1420-36148-20P 1420-36148-316 1420-40148-30 1420-40148-20 1420-40148-20P 1420-40148-316
1420-36248-30 1420-36248-20 1420-36248-20P 1420-36248-316 1420-40248-30 1420-40248-20 1420-40248-20P 1420-40248-316
1D-016 1420-36168-30 1420-36168-20 1420-36168-20P 1420-36168-316 1420-40168-30 1420-40168-20 1420-40168-20P 1420-40168-316
1420-36169-30 1420-36169-20 1420-36169-20P 1420-36169-316 1420-40169-30 1420-40169-20 1420-40169-20P 1420-40169-316
1420-36268-30 1420-36268-20 1420-36268-20P 1420-36268-316 1420-40268-30 1420-40268-20 1420-40268-20P 1420-40268-316
1420-36360-30 1420-36360-20 1420-36360-20P 1420-36360-316 1420-40360-30 1420-40360-20 1420-40360-20P 1420-40360-316
1420-36105-30 1420-36105-20 1420-36105-20P 1420-36105-316 1420-40105-30 1420-40105-20 1420-40105-20P 1420-40105-316
