P. 85

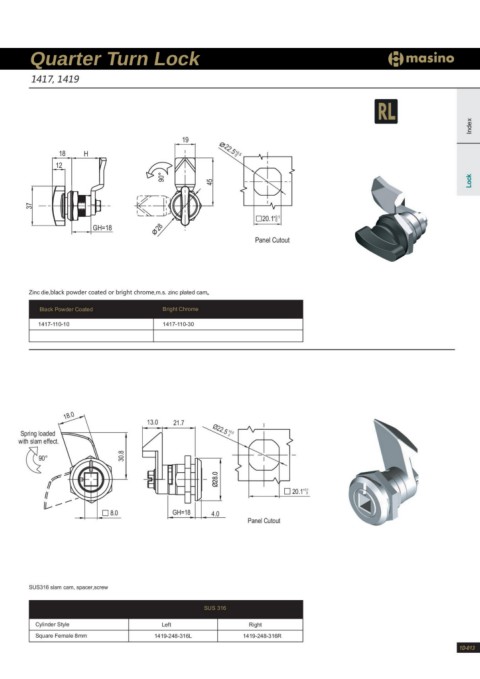

Quarter Turn Lock
1417, 1419
Index
18 H 19 22.5 0+0.5
12
37 Lock
28 90°
20.1+00.1
45 Panel Cutout
GH=18
Zinc die,black powder coated or bright chrome,m.s. zinc plated cam。
Black Powder Coated Bright Chrome
1417-110-10 1417-110-30
18.0 13.0 21.7 Ø22.5 0+0.5
Spring loaded
with slam effect. 30.8
Ø28.0
90°
20.1+0.01
8.0 GH=18 4.0 Panel Cutout
SUS316 slam cam, spacer,screw SUS 316
Cylinder Style Left Right
Square Female 8mm 1419-248-316L 1419-248-316R
1D-013
