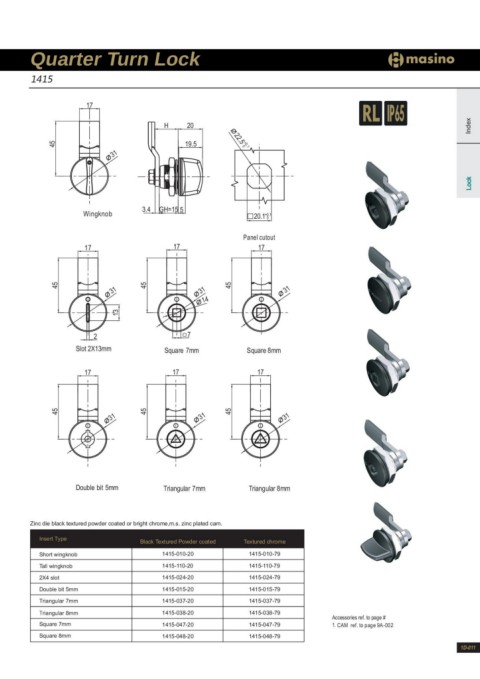

Quarter Turn Lock

1415

17 H 20 Index
31 19.5
45 45 45 22.5+0.01

Lock

Wingknob 3.4 GH=15 5 20.1+00.1
17 17 Panel cutout

3113 31 45 45 17
45 14
2 31
Slot 2X13mm 7
Square 7mm Square 8mm
17 17
17

45
31 31 31

Double bit 5mm Triangular 7mm Triangular 8mm

Zinc die black textured powder coated or bright chrome,m.s. zinc plated cam.

Insert Type Black Textured Powder coated Textured chrome Accessories ref. to page #
1415-010-20 1415-010-79 1. CAM ref. to page 9A-002
Short wingknob 1415-110-20 1415-110-79
Tall wingknob 1415-024-20 1415-024-79
2X4 slot 1415-015-20 1415-015-79
Double bit 5mm 1415-037-20 1415-037-79
Triangular 7mm 1415-038-20 1415-038-79
Triangular 8mm 1415-047-20 1415-047-79
Square 7mm 1415-048-20 1415-048-79
Square 8mm

1D-011
