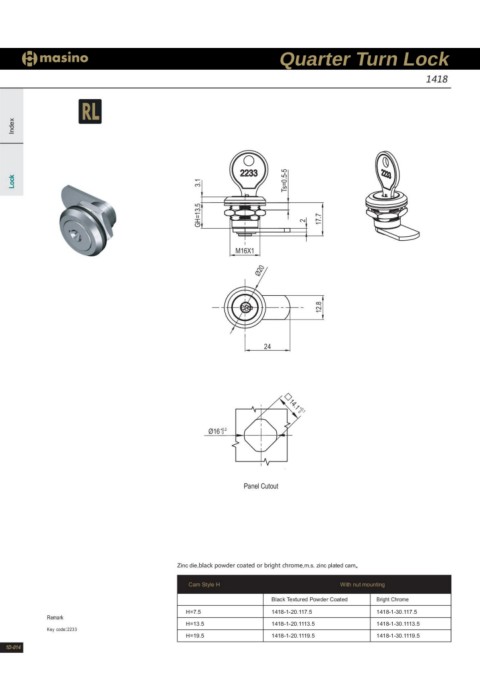

Quarter Turn Lock
1418

Index

Lock GH=13.5 3.1 Ts=0.5-5

2
17.7

M16X1

Ø20
12.8

24

14.1+0.10

Ø16 +00.2
Panel Cutout

Zinc die,black powder coated or bright chrome,m.s. zinc plated cam。

Cam Style H With nut mounting

Remark H=7.5 Black Textured Powder Coated Bright Chrome
Key code:2233 H=13.5 1418-1-20.117.5 1418-1-30.117.5
H=19.5 1418-1-20.1113.5 1418-1-30.1113.5
1418-1-20.1119.5 1418-1-30.1119.5

1D-014
