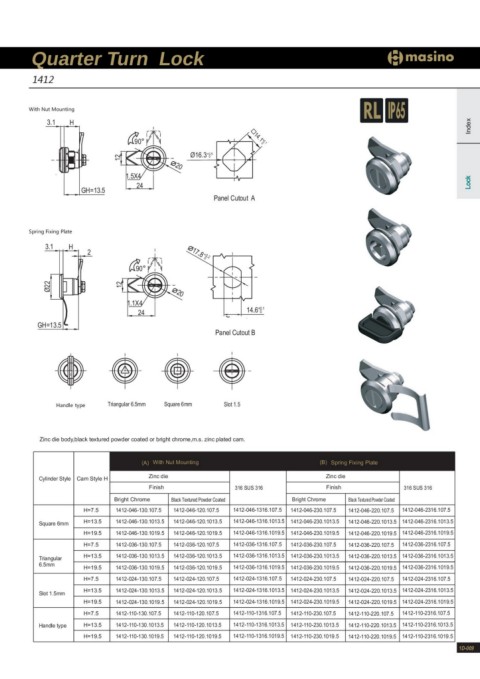

Quarter Turn Lock

1412

With Nut Mounting Index

3.1 H

90° 14.1+0.10

Ø22 GH=13.5 1.5X4 Ø16.3 +00.5 Lock
12 12 24 20

Panel Cutout A

Spring Fixing Plate 2 17.8 +00.2

3.1 H 20
14.6+00.1
90°
1.1X4 Panel Cutout B

24

GH=13.5

Handle type Triangular 6.5mm Square 6mm Slot 1.5

Zinc die body,black textured powder coated or bright chrome,m.s. zinc plated cam.

(A) With Nut Mounting (B) Spring Fixing Plate

Cylinder Style Cam Style H Zinc die Zinc die
Finish
316 SUS 316 Finish 316 SUS 316

H=7.5 Bright Chrome Black Textured Powder Coated 1412-046-1316.107.5 Bright Chrome Black Textured Powder Coated
1412-046-130.107.5 1412-046-120.107.5 1412-046-230.107.5 1412-046-220.107.5 1412-046-2316.107.5

Square 6mm H=13.5 1412-046-130.1013.5 1412-046-120.1013.5 1412-046-1316.1013.5 1412-046-230.1013.5 1412-046-220.1013.5 1412-046-2316.1013.5
H=19.5 1412-046-130.1019.5 1412-046-120.1019.5
1412-046-1316.1019.5 1412-046-230.1019.5 1412-046-220.1019.5 1412-046-2316.1019.5

H=7.5 1412-036-130.107.5 1412-036-120.107.5 1412-036-1316.107.5 1412-036-230.107.5 1412-036-220.107.5 1412-036-2316.107.5

Triangular H=13.5 1412-036-130.1013.5 1412-036-120.1013.5 1412-036-1316.1013.5 1412-036-230.1013.5 1412-036-220.1013.5 1412-036-2316.1013.5
6.5mm H=19.5 1412-036-130.1019.5 1412-036-120.1019.5
1412-036-1316.1019.5 1412-036-230.1019.5 1412-036-220.1019.5 1412-036-2316.1019.5

H=7.5 1412-024-130.107.5 1412-024-120.107.5 1412-024-1316.107.5 1412-024-230.107.5 1412-024-220.107.5 1412-024-2316.107.5

Slot 1.5mm H=13.5 1412-024-130.1013.5 1412-024-120.1013.5 1412-024-1316.1013.5 1412-024-230.1013.5 1412-024-220.1013.5 1412-024-2316.1013.5
H=19.5 1412-024-130.1019.5 1412-024-120.1019.5
1412-024-1316.1019.5 1412-024-230.1019.5 1412-024-220.1019.5 1412-024-2316.1019.5

H=7.5 1412-110-130.107.5 1412-110-120.107.5 1412-110-1316.107.5 1412-110-230.107.5 1412-110-220.107.5 1412-110-2316.107.5

Handle type H=13.5 1412-110-130.1013.5 1412-110-120.1013.5 1412-110-1316.1013.5 1412-110-230.1013.5 1412-110-220.1013.5 1412-110-2316.1013.5
H=19.5 1412-110-130.1019.5 1412-110-120.1019.5
1412-110-1316.1019.5 1412-110-230.1019.5 1412-110-220.1019.5 1412-110-2316.1019.5

1D-009
