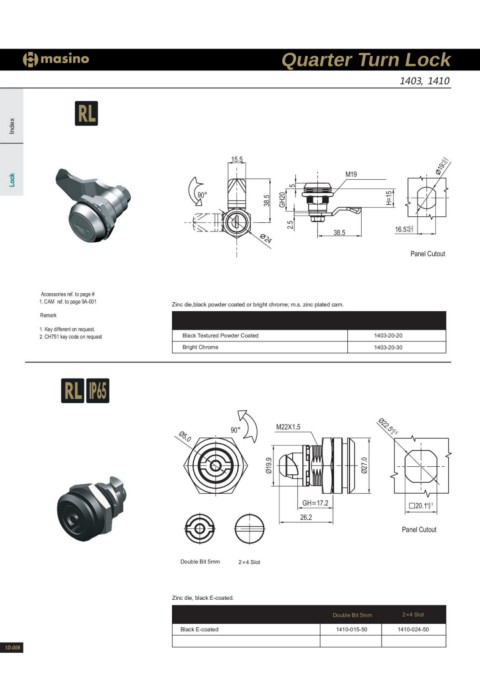

Quarter Turn Lock
1403, 1410

Index

Lock 15.5 M19 H=15
90° +0+.01.219
38.5
24 GH20

5

2.5 38.5 16.5++00..12

Panel Cutout

Accessories ref. to page # Zinc die,black powder coated or bright chrome; m.s. zinc plated cam. 1403-20-20
1. CAM ref. to page 9A-001 1403-20-30
Remark Black Textured Powder Coated
1. Key different on request. Bright Chrome
2. CH751 key code on request
Ø5.0 90° M22X1.5 Ø22.5 0+0.5
1D-006
Ø19.9
Ø27.0

GH=17.2 20.1+00.1
26.2 Panel Cutout

Double Bit 5mm 2×4 Slot

Zinc die, black E-coated. Double Bit 5mm 2×4 Slot
Black E-coated 1410-015-50 1410-024-50
