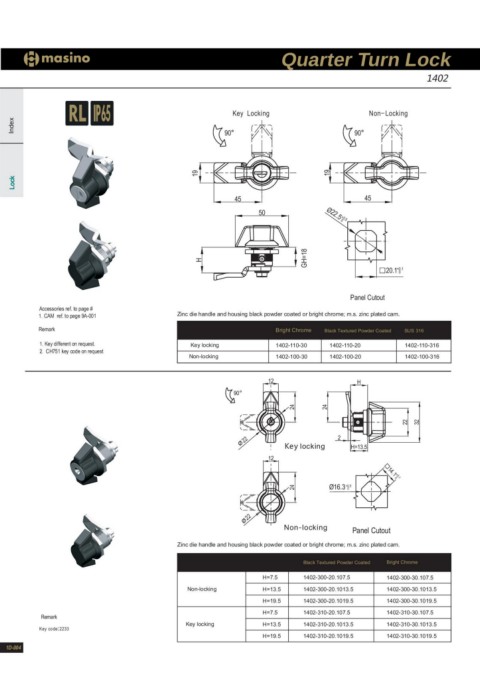

Quarter Turn Lock
1402

Index Key Locking Non-Locking
90° 90°

Lock H 19
GH=18
45 Ø22.5 0+0.5 45
1950

20.1+00.1

Panel Cutout

Accessories ref. to page # Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam.
1. CAM ref. to page 9A-001
Remark Key locking Bright Chrome Black Textured Powder Coated SUS 316
1. Key different on request. Non-locking
2. CH751 key code on request 1402-110-30 1402-110-20 1402-110-316
1402-100-30 1402-100-20 1402-100-316

12 H
90°

22 24 24Key locking 2
24 H=13.5

12 22
32
14.1+0.10

Ø16.3 +00.5

22 Non-locking

Panel Cutout

Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam.

Remark Non-locking H=7.5 Black Textured Powder Coated Bright Chrome
Key code:2233 Key locking H=13.5
H=19.5 1402-300-20.107.5 1402-300-30.107.5
H=7.5 1402-300-20.1013.5 1402-300-30.1013.5
H=13.5 1402-300-20.1019.5 1402-300-30.1019.5
H=19.5 1402-310-20.107.5 1402-310-30.107.5
1402-310-20.1013.5 1402-310-30.1013.5
1402-310-20.1019.5 1402-310-30.1019.5

1D-004
