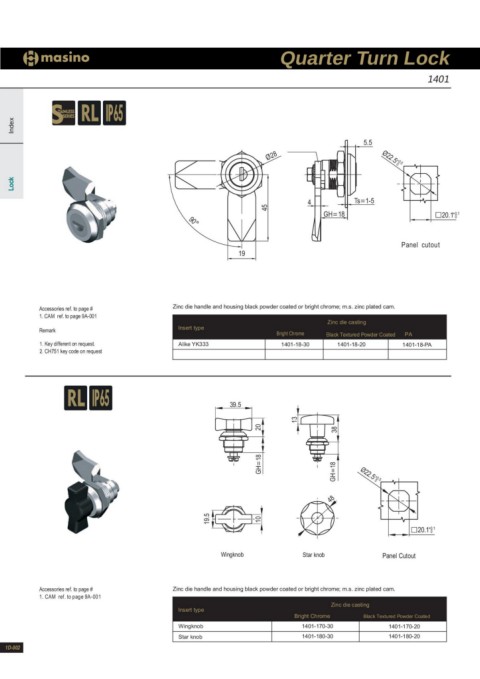

Quarter Turn Lock
1401

Index

5.5
Ø28 Ø22.5 0+0.5

Lock

45 4 Ts=1-5 20.1+00.1
GH=18
90°

Panel cutout
19

Accessories ref. to page # Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam.
1. CAM ref. to page 9A-001
Remark Insert type Bright Chrome Zinc die casting PA
1. Key different on request. Alike YK333 1401-18-30 1401-18-PA
2. CH751 key code on request Black Textured Powder Coated
1401-18-20
Accessories ref. to page #
1. CAM ref. to page 9A-001 39.5
1D-002
GH=18 20 Ø22.5 0+0.5
13
20.1+00.1
GH=18 38 Panel Cutout

19.5 10 48
Star knob
Wingknob

Zinc die handle and housing black powder coated or bright chrome; m.s. zinc plated cam.

Insert type Zinc die casting

Wingknob Bright Chrome Black Textured Powder Coated
Star knob
1401-170-30 1401-170-20

1401-180-30 1401-180-20
