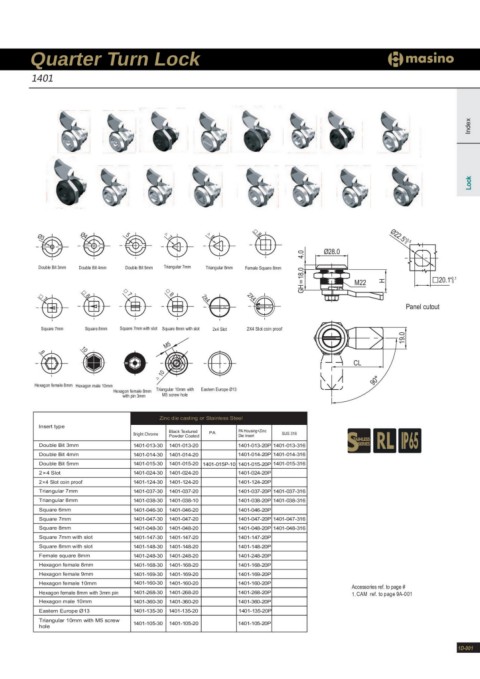

Quarter Turn Lock

1401

Index

Lock

Ø3 Ø4 5 △7 △8 □8 Ø22.5 0+0.5

Double Bit 3mm Double Bit 4mm Double Bit 5mm Triangular 7mm Triangular 8mm Female Square 8mm GH=18.0 4.0 Ø28.0 20.1+00.1
M22 Panel cutout
90° H
□ 7 2X4 19.0
2x4
□8
□7
□8

Square 7mm Square 8mm Square 7mm with slot Square 8mm with slot 2x4 Slot 2X4 Slot coin proof

10 M5
8

CL

△ 10

Hexagon female 8mm Hexagon male 10mm Triangular 10mm with Eastern Europe Ø13
Hexagwoitnh fpeimn a3lme m8mm M5 screw hole

Zinc die casting or Stainless Steel

Insert type Bright Chrome Black Textured PA PA Housing+Zinc SUS 316
Powder Coated Die Insert
Double Bit 3mm 1401-013-30
Double Bit 4mm 1401-014-30 1401-013-20 1401-013-20P 1401-013-316
Double Bit 5mm 1401-015-30
2×4 Slot 1401-024-30 1401-014-20 1401-014-20P 1401-014-316
2×4 Slot coin proof 1401-124-30
Triangular 7mm 1401-037-30 1401-015-20 1401-015P-10 1401-015-20P 1401-015-316
Triangular 8mm 1401-038-30
Square 6mm 1401-046-30 1401-024-20 1401-024-20P
Square 7mm 1401-047-30
Square 8mm 1401-048-30 1401-124-20 1401-124-20P
Square 7mm with slot 1401-147-30
Square 8mm with slot 1401-148-30 1401-037-20 1401-037-20P 1401-037-316
Female square 8mm 1401-248-30
Hexagon female 8mm 1401-168-30 1401-038-10 1401-038-20P 1401-038-316
Hexagon female 9mm 1401-169-30
Hexagon female 10mm 1401-160-30 1401-046-20 1401-046-20P
Hexagon female 8mm with 3mm pin 1401-268-30
Hexagon male 10mm 1401-360-30 1401-047-20 1401-047-20P 1401-047-316
Eastern Europe Ø13 1401-135-30
Triangular 10mm with M5 screw 1401-048-20 1401-048-20P 1401-048-316
hole
1401-147-20 1401-147-20P

1401-148-20 1401-148-20P

1401-248-20 1401-248-20P

1401-168-20 1401-168-20P

1401-169-20 1401-169-20P

1401-160-20 1401-160-20P Accessories ref. to page #
1. CAM ref. to page 9A-001
1401-268-20 1401-268-20P
1D-001
1401-360-20 1401-360-20P

1401-135-20 1401-135-20P

1401-105-30 1401-105-20 1401-105-20P
