P. 92

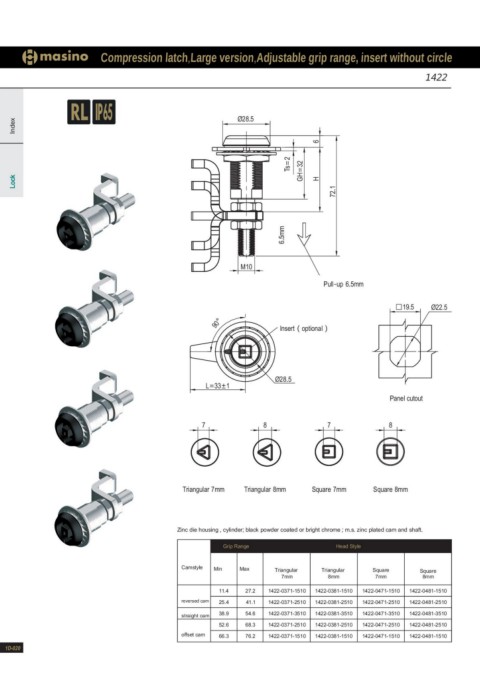

Index Compression latch,Large version,Adjustable grip range, insert without circle
1422
Ø28.5
Lock Ts=2
GH=32
H6
72.1
6.5mm
M10 19.5 Ø22.5
Pull-up 6.5mm
90°
Insert（optional）
L=33±1 Ø28.5 7 Panel cutout
7 8 8
Triangular 7mm Triangular 8mm Square 7mm Square 8mm
Zinc die housing , cylinder; black powder coated or bright chrome ; m.s. zinc plated cam and shaft.
Grip Range Head Style
Camstyle Min Max Triangular Triangular Square S8qmuamre
7mm 8mm 7mm
reversed cam 11.4 27.2 1422-0371-1510 1422-0381-1510 1422-0471-1510 1422-0481-1510
straight cam 25.4 41.1 1422-0371-2510 1422-0381-2510 1422-0471-2510 1422-0481-2510
38.9 54.6 1422-0371-3510 1422-0381-3510 1422-0471-3510 1422-0481-3510
offset cam 52.6 68.3 1422-0371-2510 1422-0381-2510 1422-0471-2510 1422-0481-2510
66.3 76.2 1422-0371-1510 1422-0381-1510 1422-0471-1510 1422-0481-1510
1D-020
