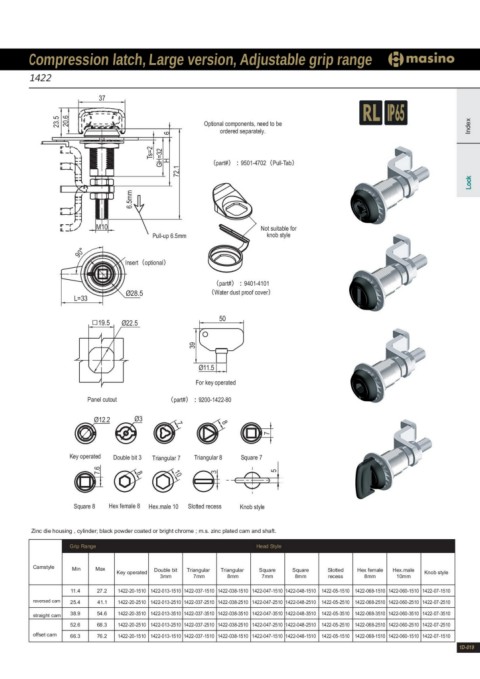

Compression latch, Large version, Adjustable grip range

1422

37
Optional components, need to be
ordered separately.

（part#）：9501-4702（Pull-Tab）
23.5 Index
20.6
6.5mm Lock
Ts=2
GHH=32 6
72.1

90° M10 Noktnsoubitasbtylelefor
Pull-up 6.5mm
（part#）：9401-4101
Insert（optional） （Water dust proof cover）

L=33 Ø28.5 50
19.5 Ø22.5

39

Panel cutout Ø11.5
Ø12.2 For key operated

（part#）：9200-1422-80

Ø3
8
7 10 57

8
Key operated Double bit 3 Triangular 7 Triangular 8 Square 7

7.6
3

Square 8 Hex female 8 Hex.male 10 Slotted recess Knob style

Zinc die housing , cylinder; black powder coated or bright chrome ; m.s. zinc plated cam and shaft.

Grip Range Head Style

Camstyle Min Max Key operated Double bit Triangular Triangular Square Square Slotted Hex female Hex.male Knob style
3mm 7mm 8mm 7mm 8mm recess 8mm 10mm

reversed cam 11.4 27.2 1422-20-1510 1422-013-1510 1422-037-1510 1422-038-1510 1422-047-1510 1422-048-1510 1422-05-1510 1422-068-1510 1422-060-1510 1422-07-1510
straight cam 25.4 41.1 1422-20-2510 1422-013-2510 1422-037-2510 1422-038-2510 1422-047-2510 1422-048-2510 1422-05-2510 1422-068-2510 1422-060-2510 1422-07-2510
38.9 54.6 1422-20-3510 1422-013-3510 1422-037-3510 1422-038-3510 1422-047-3510 1422-048-3510 1422-05-3510 1422-068-3510 1422-060-3510 1422-07-3510
offset cam 52.6 68.3 1422-20-2510 1422-013-2510 1422-037-2510 1422-038-2510 1422-047-2510 1422-048-2510 1422-05-2510 1422-068-2510 1422-060-2510 1422-07-2510
66.3 76.2 1422-20-1510 1422-013-1510 1422-037-1510 1422-038-1510 1422-047-1510 1422-048-1510 1422-05-1510 1422-068-1510 1422-060-1510 1422-07-1510

1D-019
