P. 93

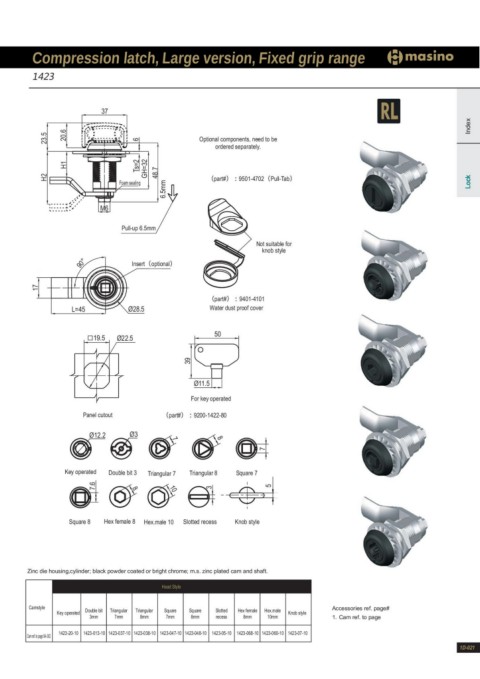

Compression latch, Large version, Fixed grip range
1423
23.5 37 Index
20.6 Optional components, need to be
ordered separately.
Ts=2 6
H2 GH=32 （part#）：9501-4702（Pull-Tab） Lock
H1 48.7 Noktnsoubitasbtylelefor
6.5mm
Foam sealing
17
90° M6
Pull-up 6.5mm
Insert（optional）
L=45 Ø28.5 （part#）：9401-4101
19.5 Ø22.5 Water dust proof cover
50
39
Panel cutout Ø11.5
Ø12.2 For key operated
（part#）：9200-1422-80
Ø3
8
7 10
8
7.6
3
57
Key operated Double bit 3 Triangular 7 Triangular 8 Square 7
Square 8 Hex female 8 Hex.male 10 Slotted recess Knob style
Zinc die housing,cylinder; black powder coated or bright chrome; m.s. zinc plated cam and shaft.
Head Style
Camstyle Key operated Double bit Triangular Triangular Square Square Slotted Hex female Hex.male Knob style Accessories ref. page#
3mm 7mm 8mm 7mm 8mm recess 8mm 10mm 1. Cam ref. to page
Cam ref. to page 9A-002 1423-20-10 1423-013-10 1423-037-10 1423-038-10 1423-047-10 1423-048-10 1423-05-10 1423-068-10 1423-060-10 1423-07-10
1D-021
