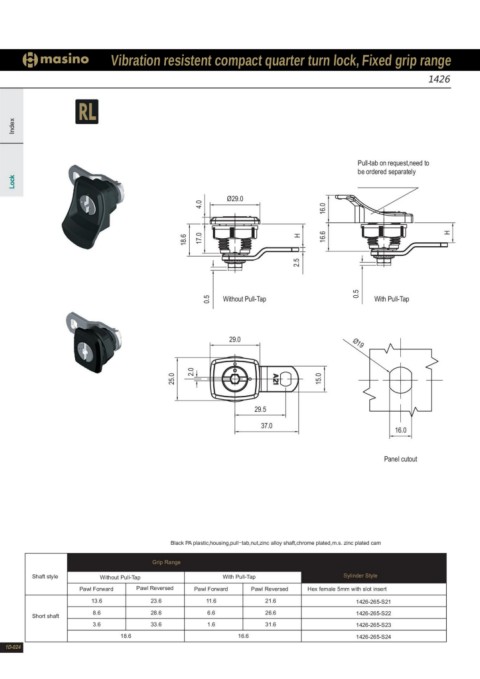

Vibration resistent compact quarter turn lock, Fixed grip range

1426

Index

Lock Pull-tab on request,need to
be ordered separately

18.6 Ø29.0 2.5 H
17.0 4.0 16.6 16.0
H
0.5
0.5 Without Pull-Tap With Pull-Tap
29.0 Ø19
25.0 15.0
2.0 29.5 16.0
37.0 Panel cutout

Black PA plastic,housing,pull-tab,nut,zinc alloy shaft,chrome plated,m.s. zinc plated cam

Grip Range

Shaft style Without Pull-Tap With Pull-Tap Sylinder Style
Short shaft
1D-024 Pawl Forward Pawl Reversed Pawl Forward Pawl Reversed Hex female 5mm with slot insert
1426-265-S21
13.6 23.6 11.6 21.6 1426-265-S22
1426-265-S23
8.6 28.6 6.6 26.6 1426-265-S24

3.6 33.6 1.6 31.6

18.6 16.6
