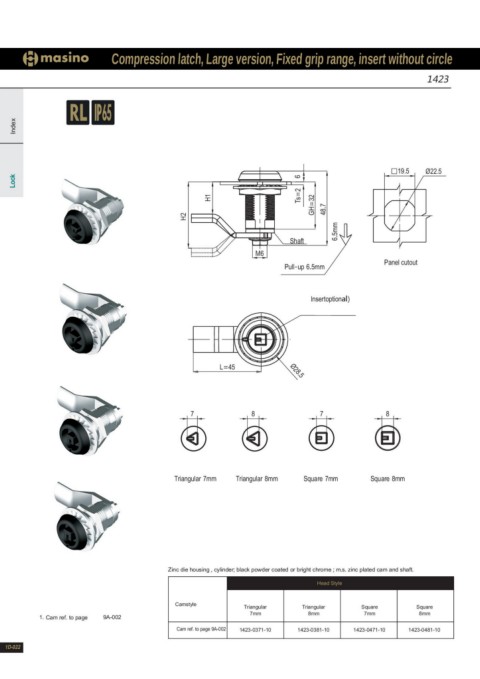

Compression latch, Large version, Fixed grip range, insert without circle

1423

Index

Lock Ts=2 6 19.5 Ø22.5

H2 GH=32
H1 48.7

6.5mm
Shaft
M6 Panel cutout

Pull-up 6.5mm

Insertoptional)

L=45 Ø28.5
78
78

Triangular 7mm Triangular 8mm Square 7mm Square 8mm

Zinc die housing , cylinder; black powder coated or bright chrome ; m.s. zinc plated cam and shaft.
Head Style

1. Cam ref. to page 9A-002 Camstyle Triangular Triangular Square Square
Cam ref. to page 9A-002 7mm 8mm 7mm 8mm

1423-0371-10 1423-0381-10 1423-0471-10 1423-0481-10

1D-022
