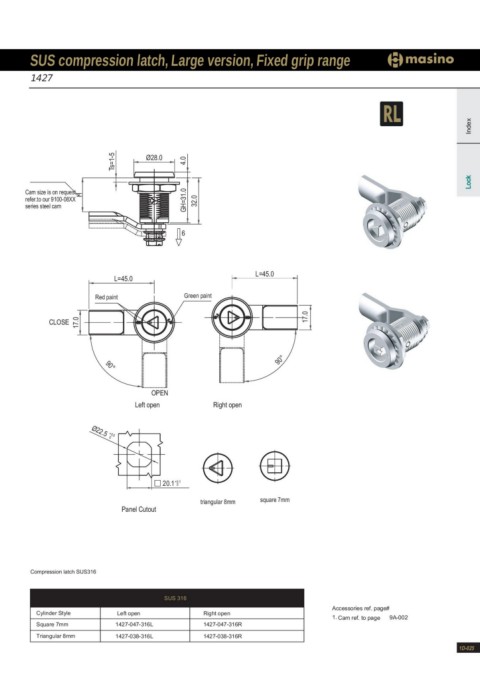

SUS compression latch, Large version, Fixed grip range
1427
Index
Cam size is on request,H Ø28.0 Lock
refer.to our 9100-08XX Ts=1-5 6
series steel cam
GH=31.0 4.0
32.0
L=45.0 L=45.0
Red paint
Green paint
CLOSE 17.0
90°
17.0
90°
OPEN Right open
Left open
Ø22.5 0+0.5
20.1 +00.1 triangular 8mm square 7mm
Panel Cutout
Compression latch SUS316
SUS 316
Cylinder Style Left open Right open Accessories ref. page#
Square 7mm 1427-047-316L 1427-047-316R 1. Cam ref. to page 9A-002
Triangular 8mm 1427-038-316L 1427-038-316R
1D-025
