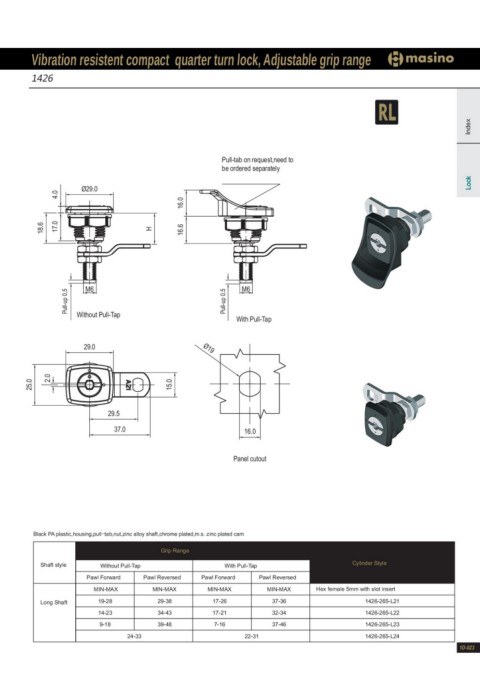

Vibration resistent compact quarter turn lock, Adjustable grip range

1426

Index

Pull-tab on request,need to
be ordered separately

Ø29.0 Lock

18.6 H
17.0 4.0 16.6 16.0

Pull-up 0.5 M6 Pull-up 0.5 M6
Without Pull-Tap With Pull-Tap
25.0 15.0 Ø19
2.0 29.0
16.0
29.5 Panel cutout
37.0

Black PA plastic,housing,pull-tab,nut,zinc alloy shaft,chrome plated,m.s. zinc plated cam

Grip Range

Shaft style Without Pull-Tap With Pull-Tap Cylinder Style
Long Shaft
Pawl Forward Pawl Reversed Pawl Forward Pawl Reversed Hex female 5mm with slot insert
1426-265-L21
MIN-MAX MIN-MAX MIN-MAX MIN-MAX 1426-265-L22
1426-265-L23
19-28 29-38 17-26 37-36 1426-265-L24

14-23 34-43 17-21 32-34

9-18 39-48 7-16 37-46

24-33 22-31

1D-023
