P. 65

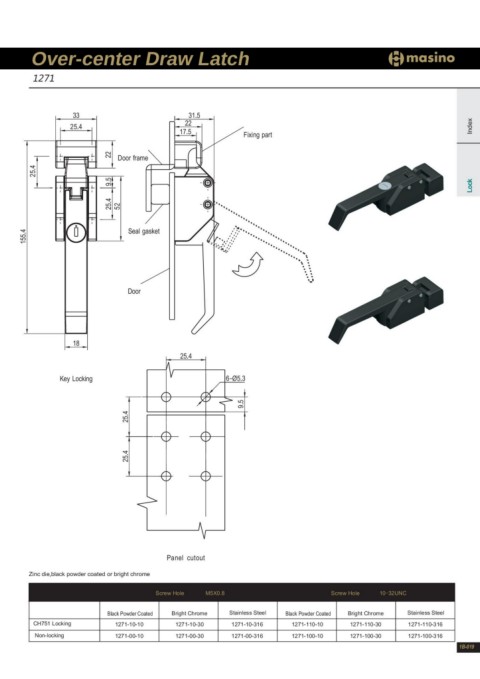

Over-center Draw Latch
1271
33 31.5 Index
22
25.4 17.5 Fixing part
155.4 Door frame
25.4
Lock
25.4 9.5 22
52 Seal gasket
Door
18 25.4
Key Locking 6-Ø5.3
25.4 25.4
9.5
Panel cutout
Zinc die,black powder coated or bright chrome
Screw Hole M5X0.8 Screw Hole 10-32UNC
CH751 Locking Black Powder Coated Bright Chrome Stainless Steel Black Powder Coated Bright Chrome Stainless Steel
Non-locking 1271-10-10 1271-10-30 1271-10-316 1271-110-10 1271-110-30 1271-110-316
1271-00-10 1271-00-30 1271-00-316 1271-100-10 1271-100-30 1271-100-316
1B-019
