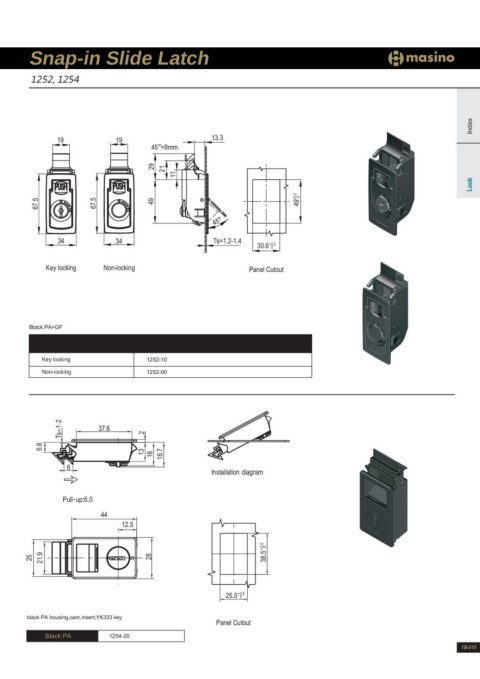

Snap-in Slide Latch
1252, 1254
13.3 Index
19 19 45°=8mm
67.5 Lock
67.5
49 29
21
11
49+00.2
34 34 45° 30.6+00.2
Key locking Non-locking Ts=1.2-1.4
Panel Cutout
Black PA+GF 1252-10
1252-00
Key locking
Non-locking
6.8 37.6
Ts=1-2
13 2
16
16.7
6 Installation diagram
Pull-up:6.0 12.5
44
25 38.5+00.5
21.9
28
black PA housing,cam,insert;YK333 key 25.5+00.5
Panel Cutout
Black PA 1254-20
