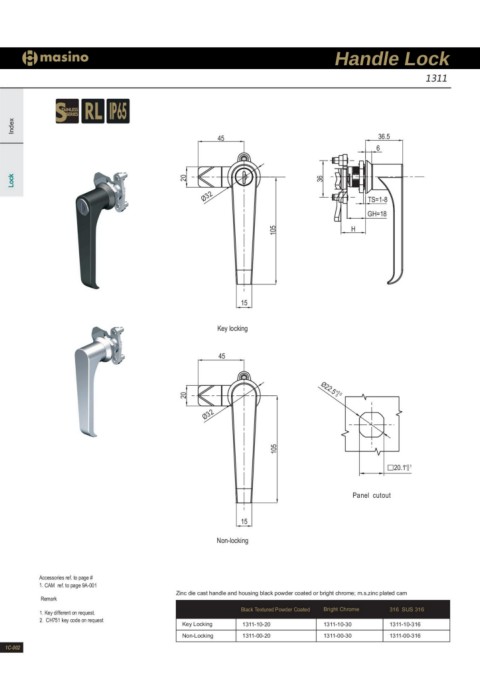

Page 68 - MasinoFastening_lukkokatalogi

Index 45 Handle Lock
Ø32 1311
Lock 20
105 36.5
6
36
TS=1-8
GH=18
H

1520 Ø22.5 0+0.5
Key locking 105
45 20.1+00.1
Panel cutout
Ø32

15
Non-locking

Accessories ref. to page # Zinc die cast handle and housing black powder coated or bright chrome; m.s.zinc plated cam
1. CAM ref. to page 9A-001
Remark Key Locking Black Textured Powder Coated Bright Chrome 316 SUS 316
1. Key different on request. Non-Locking
2. CH751 key code on request 1311-10-20 1311-10-30 1311-10-316
1311-00-20 1311-00-30 1311-00-316
1C-002
