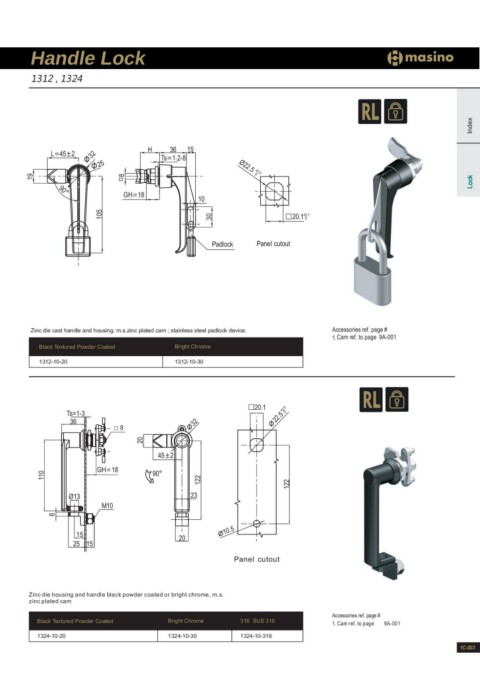

Handle Lock

1312 , 1324

Index

L=45±2 H 36 15
25 Ts=1.2-8
32 Ø22.5 0+0.5
19 8 20.1+00.1 Lock

90° GH=18 10

105 30

Padlock Panel cutout

Zinc die cast handle and housing; m.s.zinc plated cam ; stainless steel padlock device. Accessories ref. page #
1.Cam ref. to page 9A-001
Black Textured Powder Coated Bright Chrome Accessories ref. page #
1. Cam ref. to page 9A-001
1312-10-20 1312-10-30

Ts=1-3 20.1 22.5 0+0.5
36
□8 20
122 32
110 GH=18 45±2 122
6 Ø13 90°

M10 23
15
25 15 20 10.5
Panel cutout

Zinc die housing and handle black powder coated or bright chrome, m.s.
zinc plated cam

Black Textured Powder Coated Bright Chrome 316 SUS 316
1324-10-20 1324-10-30 1324-10-316
