P. 62

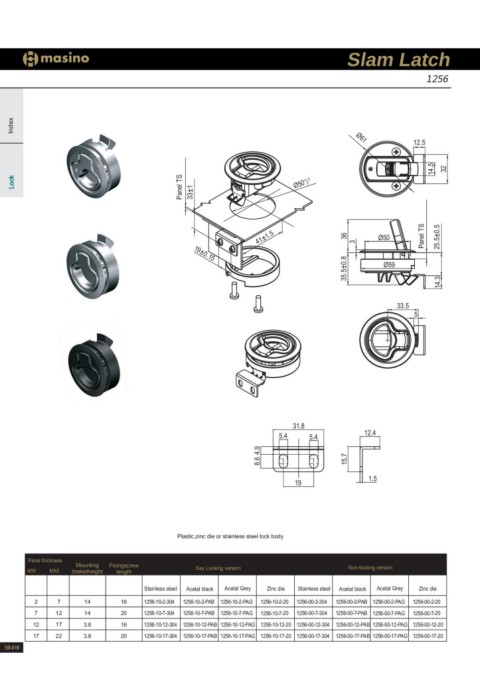

Slam Latch
1256
Index Ø61 12.5
Panel TS Ø50 14.5
33±1 Ø59 32
33.5
Lock Ø50+10.2 5
41±1.5
19±0.15 35.5±0.8 36 Panel TS 25.5±0.5
3
14.3
31.88.6 4.9 12.4
5.4 5.4 15.7 1.5
19
Plastic,zinc die or stainless steel lock body
Panel thickness Mounting Fixingscrew Key Locking version Non-locking version
MIN MAX braketheight length
Stainless steel Acetal black Acetal Grey Zinc die Stainless steel Acetal black Acetal Grey Zinc die
2 7 14 16 1256-10-2-304 1256-10-2-PAB 1256-10-2-PAG 1256-10-2-20 1256-00-2-304 1256-00-2-PAB 1256-00-2-PAG 1256-00-2-20
7 12 14 20 1256-10-7-304 1256-10-7-PAB 1256-10-7-PAG 1256-10-7-20 1256-00-7-304 1256-00-7-PAB 1256-00-7-PAG 1256-00-7-20
12 17 3.8 16 1256-10-12-304 1256-10-12-PAB 1256-10-12-PAG 1256-10-12-20 1256-00-12-304 1256-00-12-PAB 1256-00-12-PAG 1256-00-12-20
17 22 3.8 20 1256-10-17-304 1256-10-17-PAB 1256-10-17-PAG 1256-10-17-20 1256-00-17-304 1256-00-17-PAB 1256-00-17-PAG 1256-00-17-20
1B-016
