P. 60

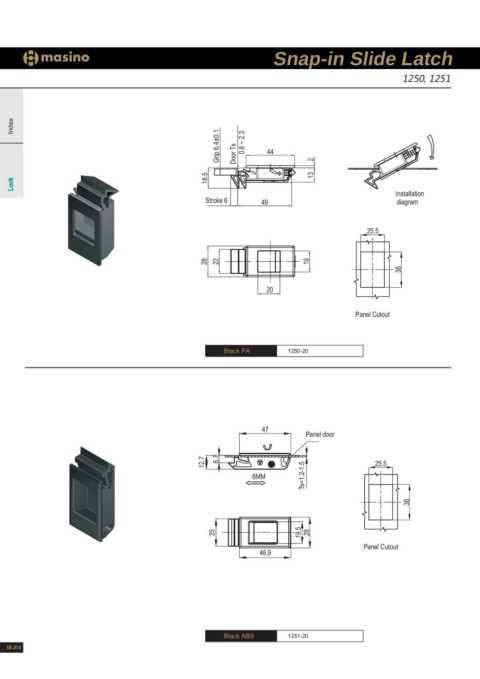

Snap-in Slide Latch
1250, 1251
Index 18.5
Grip 6.4±0.1
Door Ts 44
0.8 ~ 2.3
Lock
13 2
Stroke 6 49 Installation
diagram
25.5
28
22
19
38
20
Panel Cutout
Black PA 1250-20
47 Panel door
6MM
12.7 Ts=1.2-1.5 25.5
25 6.7
38
19.5
28
46.9 Panel Cutout
Black ABS 1251-20
1B-014
