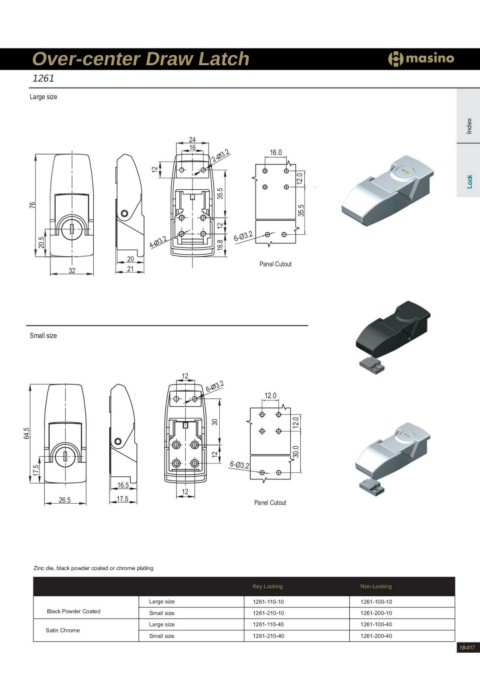

Over-center Draw Latch

1261

Large size

Index

24 16.0
16 2- 3.2

76 Lock
20.5

12
16.8 12 35.5

35.5 12.0
4- 3.2 6-Ø3.2
20
32 21 Panel Cutout

Small size

12 12.0
6- 3.2

64.5
17.5

12 30
30.0 12.0
6-Ø3.2
16.5
26.5 17.5 12
Panel Cutout

Zinc die, black powder coated or chrome plating

Black Powder Coated Large size Key Locking Non-Locking
Satin Chrome Small size
Large size 1261-110-10 1261-100-10
Small size 1261-210-10 1261-200-10
1261-110-40 1261-100-40
1261-210-40 1261-200-40

1B-017
