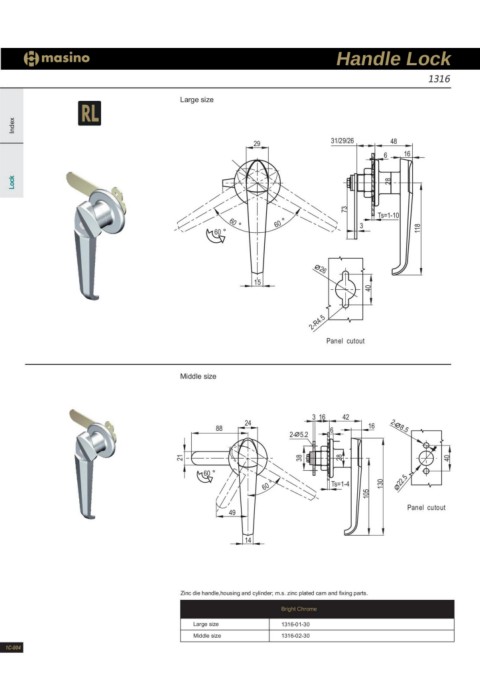

Handle Lock
1316

Large size

Index

29 31/29/26 48
6 16

Lock 73
28

118
60 ° 60 ° Ts=1-10
60 ° 3

26 40
15

2-R4.5
Panel cutout

Middle size

88 24 3 16 42 16 2- 8.5

2- 5.2 6

21
38
28
105
130
22.5
40
60 ° 60 ° Ts=1-4
49
Panel cutout

14

Zinc die handle,housing and cylinder; m.s. zinc plated cam and fixing parts.

Bright Chrome

Large size 1316-01-30
Middle size 1316-02-30

1C-004
