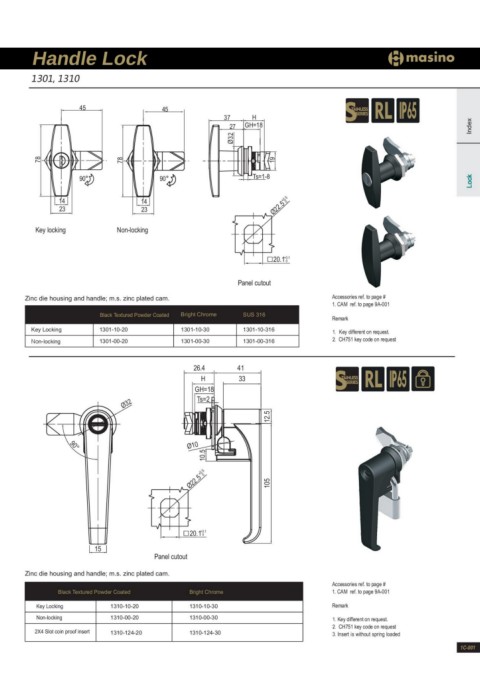

Handle Lock 37 H
27 GH=18
1301, 1310

45 45

78 Index
78

Ø32
19

90° 90° Ts=1-8 Lock
14 14 Ø22.5+0.50
23 23
Key locking Non-locking □20.1+00.1

Zinc die housing and handle; m.s. zinc plated cam. Panel cutout Accessories ref. to page #
1. CAM ref. to page 9A-001
Key Locking Black Textured Powder Coated Bright Chrome SUS 316 Remark
Non-locking 1301-10-316 1. Key different on request.
1301-10-20 1301-10-30 1301-00-316 2. CH751 key code on request
1301-00-20 1301-00-30
41 Accessories ref. to page #
26.4 33 1. CAM ref. to page 9A-001
H Remark
1. Key different on request.
GH=18 2. CH751 key code on request
Ø32 Ts=2 3. Insert is without spring loaded
10.5
90° Ø10 105 12.5
Ø22.5+0.50

□20.1+00.1

15
Panel cutout

Zinc die housing and handle; m.s. zinc plated cam.

Black Textured Powder Coated Bright Chrome
1310-10-30
Key Locking 1310-10-20 1310-00-30
Non-locking 1310-00-20
1310-124-30
2X4 Slot coin proof insert 1310-124-20

1C-001
