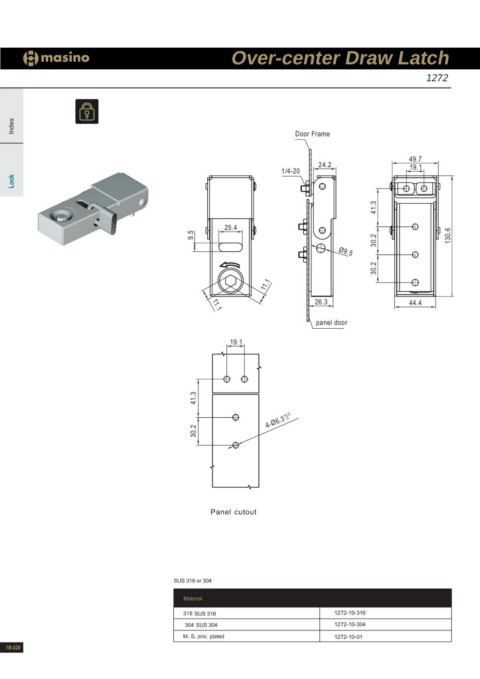

Over-center Draw Latch
1272

Index Door Frame

1/4-20 24.2 49.7
19.1

Lock

9.5 25.4 Ø9.5
11.119.1
26.3
30.2 30.2 41.3panel door
130.6

11.1 44.4

30.2 41.3 4-Ø6.3+00.2

Panel cutout 1272-10-316
1272-10-304
SUS 316 or 304 1272-10-01
Material
316 SUS 316
304 SUS 304
M.S.zinc plated
