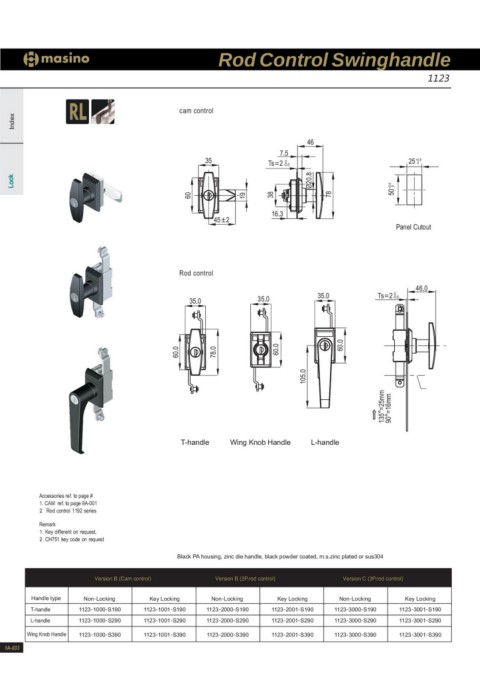

Rod Control Swinghandle
1123

Index cam control

46 25 +00.5
7.5
35 Ts=2 -00.5

Lock 60
19
38

Ø20.8
78
+00.550

45±2 16.3

Panel Cutout

Rod control 35.0 35.0 Ts=2 -00.5 46.0
35.0

60.0
78.0
60.0
105.0

60.0
1903°5°=1=265mmmm

T-handle Wing Knob Handle L-handle

Accessories ref. to page #
1. CAM ref. to page 9A-001
2. Rod control 1192 series
Remark
1. Key different on request.
2. CH751 key code on request

Black PA housing, zinc die handle, black powder coated, m.s.zinc plated or sus304

Version B (Cam control) Version B (2P.rod control) Version C (3P.rod control)

Handle type Non-Locking Key Locking Non-Locking Key Locking Non-Locking Key Locking
T-handle 1123-1000-S190 1123-1001-S190 1123-2000-S190 1123-2001-S190 1123-3000-S190 1123-3001-S190
L-handle 1123-1000-S290 1123-1001-S290 1123-2000-S290 1123-2001-S290 1123-3000-S290 1123-3001-S290

Wing Knob Handle 1123-1000-S390 1123-1001-S390 1123-2000-S390 1123-2001-S390 1123-3000-S390 1123-3001-S390

1A-033
