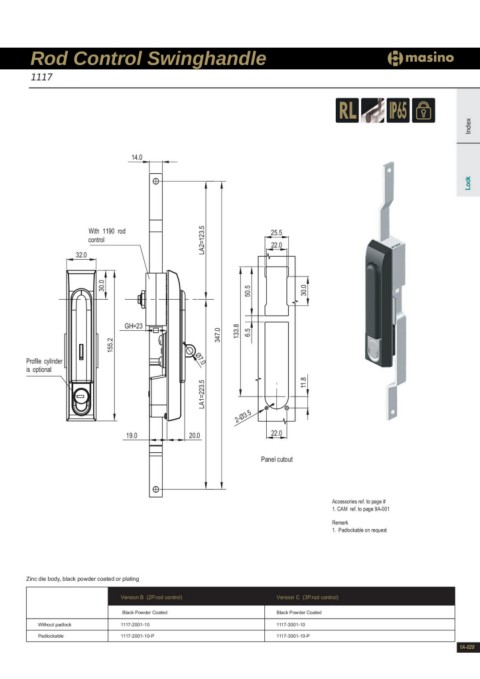

Rod Control Swinghandle
1117
Index
14.0
Lock
With 1190 rod LA2=123.5 25.5
control 22.0
32.0
30.0 GH=23 347.0 11.8 30.0
155.2 133.8
6.5 50.5
Profile cylinder Ø7.0
is optional
LA1=223.5 2-Ø3.5
19.0 20.0 22.0
Panel cutout
Accessories ref. to page #
1. CAM ref. to page 9A-001
Remark
1. Padlockable on request
Zinc die body, black powder coated or plating
Without padlock Version B (2P.rod control) Version C (3P.rod control)
Padlockable
Black Powder Coated Black Powder Coated
1117-2001-10 1117-3001-10
1117-2001-10-P 1117-3001-10-P
1A-028
