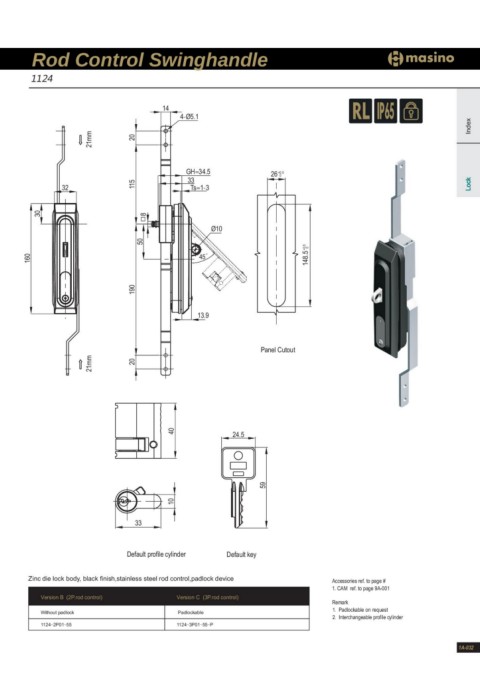

Rod Control Swinghandle Index
1124
14
4-Ø5.1
21mm GH=34.5 26 +00.5 Lock
115 20 33
50 8
32 Ts=1-3
160 Ø10 148.5 +00.5
30 45°
190
21mm 13.9
20 Panel Cutout
40 24.5
59
10
33
Default profile cylinder Default key
Zinc die lock body, black finish,stainless steel rod control,padlock device Accessories ref. to page #
1. CAM ref. to page 9A-001
Version B (2P.rod control) Version C (3P.rod control) Remark
1. Padlockable on request
Without padlock Padlockable 2. Interchangeable profile cylinder
1124-2P01-55 1124-3P01-55-P
1A-032
