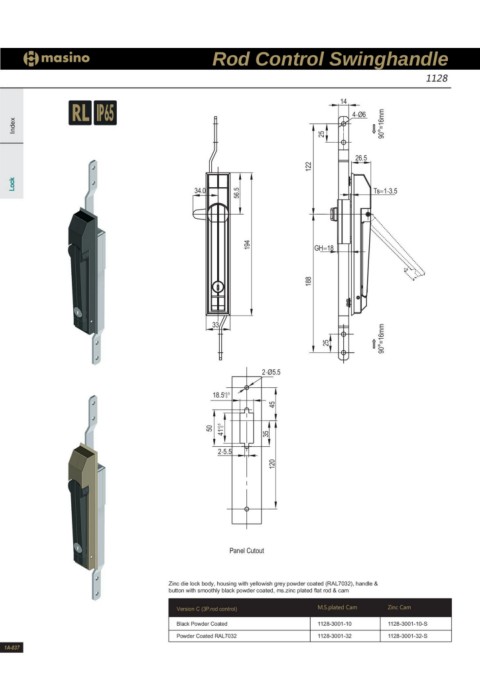

Index     Rod Control Swinghandle           122             90°=16mm
                                                                                   112825
                                                                    14
Lock                                                                      4-Ø656.5
                       194
                                                                           26.5
        34.0 Ts=1-3.5

                                                          GH=18

        33                                  188             90°=16mm
                                                   25

                                    2-Ø5.5

        18.5+00.5

        2-5.550
            +00.541
                               120 35 45

            Panel Cutout

        Zinc die lock body, housing with yellowish grey powder coated (RAL7032), handle &
        button with smoothly black powder coated, ms.zinc plated flat rod & cam

        Version C (3P.rod control)          M.S.plated Cam                                 Zinc Cam

        Black Powder Coated                 1128-3001-10                                   1128-3001-10-S
        Powder Coated RAL7032               1128-3001-32                                   1128-3001-32-S

1A-037
