P. 34

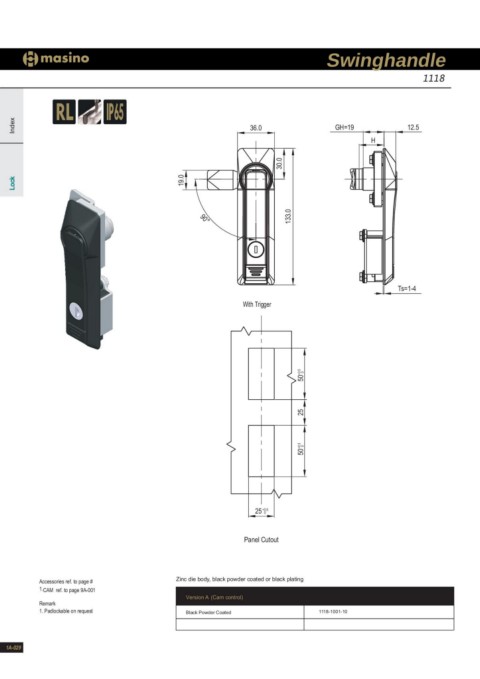

Swinghandle
                                                                                                                                                    1118

Index                                              36.0                                                              GH=19            12.5

                                                                                                                                   H

Lock                                          19.0
                                                                                       30.0

                                                                                          133.0
                                              90°

                                                                                                                                      Ts=1-4

                                                   With Trigger

                                                                                                 +00.550 25 +00.550

                                                       25 +00.5
                                                   Panel Cutout

                  Accessories ref. to page #  Zinc die body, black powder coated or black plating                    1118-1001-10
                  1.CAM ref. to page 9A-001        Version A (Cam control)
                  Remark
                  1. Padlockable on request         Black Powder Coated

1A-029
