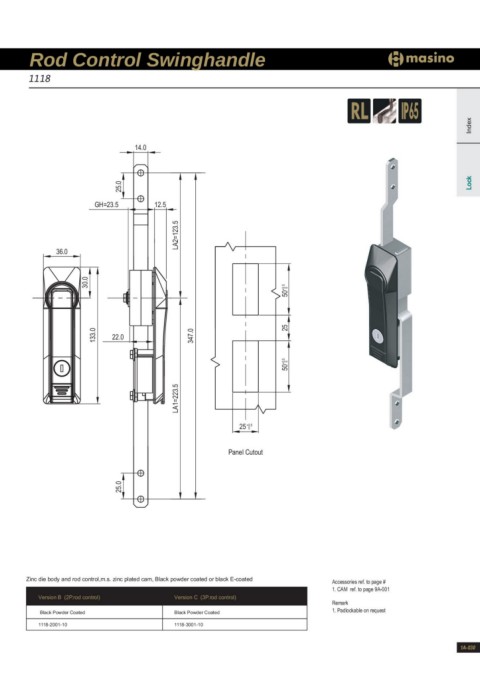

Rod Control Swinghandle

1118

                                                                                                                                           Index

                                  14.0

      133.0 30.0                                                                                                                           Lock
                   25.0
      GH=23.5                           12.5

36.0                                          LA2=123.5

                            22.0                         347.0                             +00.550 25 +00.550

                                              LA1=223.5

                                                                    25 +00.5
                                                                Panel Cutout

                            25.0

Zinc die body and rod control,m.s. zinc plated cam, Black powder coated or black E-coated                      Accessories ref. to page #
                                                                                                               1. CAM ref. to page 9A-001
Version B (2P.rod control)                    Version C (3P.rod control)                                       Remark
                                                                                                               1. Padlockable on request
Black Powder Coated                           Black Powder Coated
1118-2001-10                                  1118-3001-10

                                                                                                                                           1A-030
