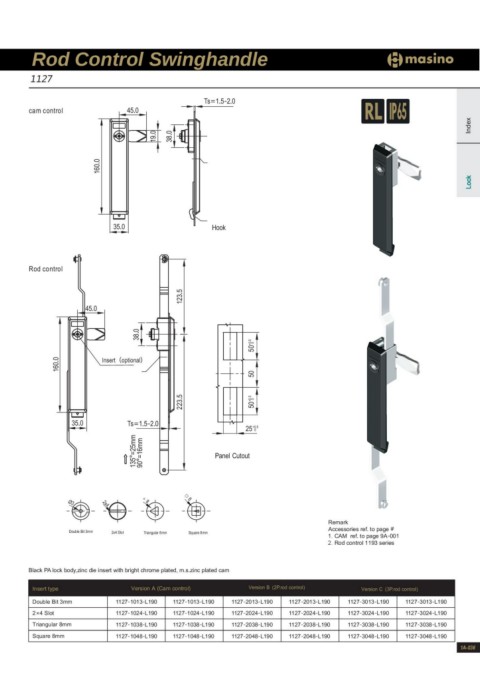

Rod Control Swinghandle

1127

cam control 45.0 Ts=1.5-2.0

160.0 Index
19.0
38.0

Lock

35.0 Hook
Rod control
38.0 +00.550 50 +00.550
45.0 123.5

Insert（optional）
160.0

35.0 Ts=1.5-2.0 1930°5°==1265mmmm 25+00.5
223.5 Panel Cutout

Ø3 △ 8
□8
2x4

Double Bit 3mm 2x4 Slot Triangular 8mm Square 8mm Remark
Accessories ref. to page #
1. CAM ref. to page 9A-001
2. Rod control 1193 series

Black PA lock body,zinc die insert with bright chrome plated, m.s.zinc plated cam

Insert type Version A (Cam control) Version B (2P.rod control) Version C (3P.rod control)

Double Bit 3mm 1127-1013-L190 1127-1013-L190 1127-2013-L190 1127-2013-L190 1127-3013-L190 1127-3013-L190
2×4 Slot 1127-1024-L190 1127-1024-L190 1127-2024-L190 1127-2024-L190 1127-3024-L190 1127-3024-L190
Triangular 8mm 1127-1038-L190 1127-1038-L190 1127-2038-L190 1127-2038-L190 1127-3038-L190 1127-3038-L190
Square 8mm 1127-1048-L190 1127-1048-L190 1127-2048-L190 1127-2048-L190 1127-3048-L190 1127-3048-L190

1A-036
