Page 36 - MasinoFastening_lukkokatalogi
P. 36

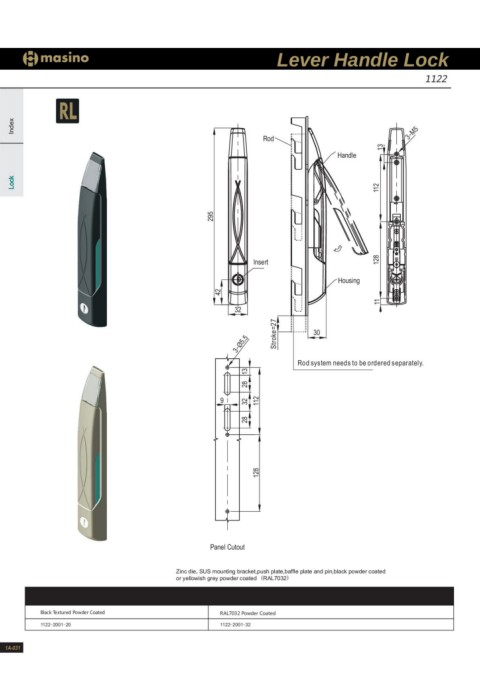

Index                                                        Lever Handle Lock
                                                                                                               1122

                                                           Rod
                                                                                          Handle
                                                                        13
                                                                                  3-M5

Lock                                                                    112

                                      42 295         Insert                             Housing11 128
                                              32
                                                                              30
                                              3-Ø5.5         Stroke=27  Rod system needs to be ordered separately.

                                      9       28 32 28 13
                                                  112

                                                      128

        Black Textured Powder Coated                Panel Cutout
        1122-2001-20                  Zorinycedlloiew,iSshUSgremyopuonwtindgerbcraocakteedt,p(uRshApLl7a0te3,2b)affle plate and pin,black powder coated

                                                                  RAL7032 Powder Coated
                                                                  1122-2001-32

1A-031
