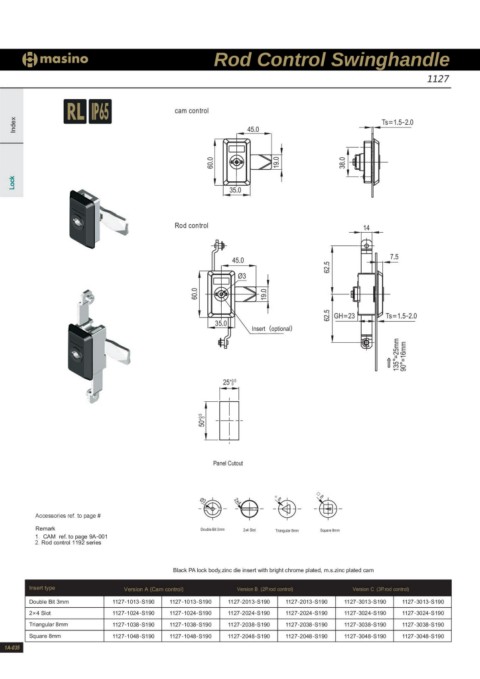

Rod Control Swinghandle
1127

cam control

Index 45.0 Ts=1.5-2.0

60.0 19.0
19.0
Lock 35.0
Rod control 62.5 62.5
38.0 14
45.0 7.5
Ø3
60.0
35.0 Insert（optional）
GH=23 Ts=1.5-2.0

9130°5°==1625mmmm

25+00.5

50+00.5

Panel Cutout

Ø3 △ 8
□8
2x4

Accessories ref. to page # Double Bit 3mm 2x4 Slot Triangular 8mm Square 8mm
Remark
1. CAM ref. to page 9A-001
2. Rod control 1192 series

Black PA lock body,zinc die insert with bright chrome plated, m.s.zinc plated cam

Insert type Version A (Cam control) Version B (2P.rod control) Version C (3P.rod control)

Double Bit 3mm 1127-1013-S190 1127-1013-S190 1127-2013-S190 1127-2013-S190 1127-3013-S190 1127-3013-S190
2×4 Slot 1127-1024-S190 1127-1024-S190 1127-2024-S190 1127-2024-S190 1127-3024-S190 1127-3024-S190
Triangular 8mm 1127-1038-S190 1127-1038-S190 1127-2038-S190 1127-2038-S190 1127-3038-S190 1127-3038-S190
Square 8mm 1127-1048-S190 1127-1048-S190 1127-2048-S190 1127-2048-S190 1127-3048-S190 1127-3048-S190

1A-035
