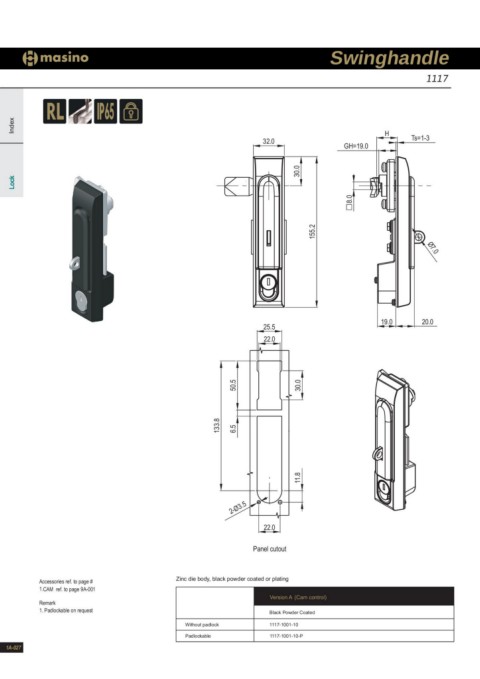

Swinghandle
1117
Index H Ts=1-3
32.0 GH=19.0
Lock 30.0
155.2
8.0
Ø7.0
25.5 19.0 20.0
22.0
133.8
6.5 50.5
11.8 30.0
2-Ø3.5
22.0
Panel cutout
Accessories ref. to page # Zinc die body, black powder coated or plating
1.CAM ref. to page 9A-001
Remark Without padlock Version A (Cam control)
1. Padlockable on request Padlockable
Black Powder Coated
1A-027 1117-1001-10
1117-1001-10-P
