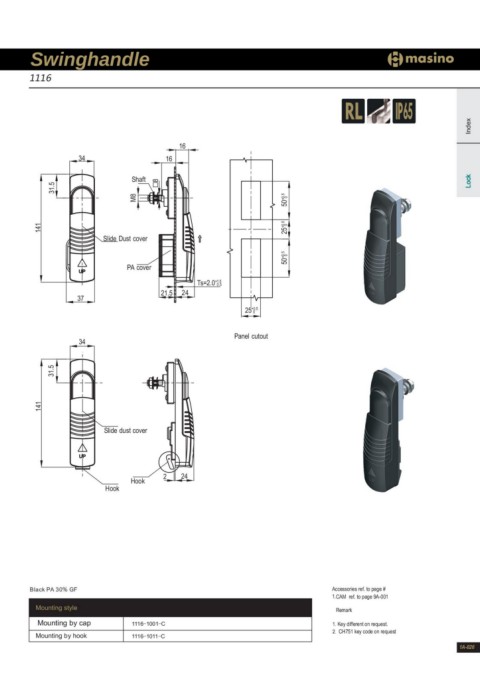

Swinghandle Index

1116141 Lock
31.5
16 50+00.5
34 16 M8
8 25+00.5
Shaft
50+00.5
Slide Dust cover
PA cover
Ts=2.0+10..55

37 21.5 24
25+00.5

34 Panel cutout

141
31.5

Slide dust cover

Hook Hook 2 24

Black PA 30% GF 1116-1001-C Accessories ref. to page #
1116-1011-C 1.CAM ref. to page 9A-001
Mounting style
Mounting by cap Remark
Mounting by hook 1. Key different on request.
2. CH751 key code on request
