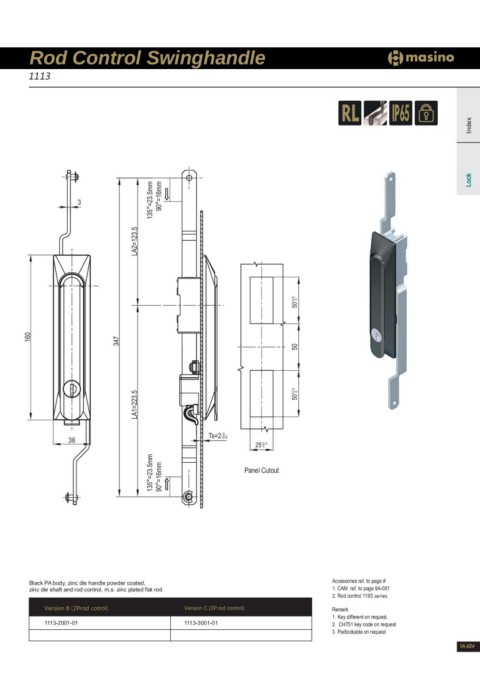

Rod Control Swinghandle Index

1113 Lock

3
LA2=123.5
135°=23.5mm
90°=16mm

50+00.5

160 347

50

LA1=223.5 50+00.5

36 Ts=2 -00.5 25+00.5

135°=23.5mm Panel Cutout
90°=16mm

Black PA body, zinc die handle powder coated, Version C (3P.rod control) Accessories ref. to page #
zinc die shaft and rod control, m.s. zinc plated flat rod 1113-3001-01 1. CAM ref. to page 9A-001
2. Rod control 1193 series
Version B (2P.rod cotrol) Remark
1113-2001-01 1. Key different on request.
2. CH751 key code on request
3. Padlockable on request
