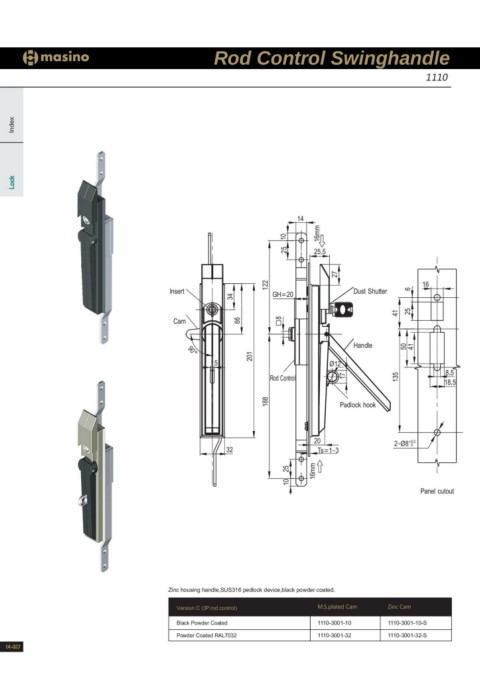

Rod Control Swinghandle
1110

Index

Lock

25 10 14 16mm
25.5

27

Insert 66 34GH=20 Dust Shutter 41 16
Cam 122 25 6
5
8
32
90° 201 Handle 135
188 Ø12 4501
Rod Control 8.5
17 Padlock hook 18.5

20 2-Ø8 +00.5
Ts=1-3

10 25
16mm

Panel cutout

Zinc housing handle,SUS316 pedlock device,black powder coated.

Version C (3P.rod control) M.S.plated Cam Zinc Cam

Black Powder Coated 1110-3001-10 1110-3001-10-S
Powder Coated RAL7032 1110-3001-32 1110-3001-32-S

1A-023
