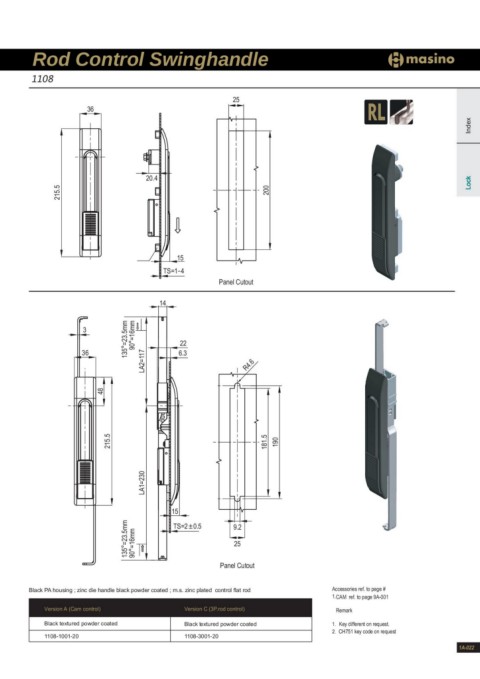

Rod Control Swinghandle Index

1108 Lock

25
36

20.4

215.5
200

15 Panel Cutout
TS=1-4

14

348
221359°0=°2=3.165mmmm

36 6.3 LA2=117

215.5 R4.6
LA1=230 181.5
190

9130°5°=1=623m.5mmm 15 9.2
TS=2±0.5 25

Panel Cutout

Black PA housing ; zinc die handle black powder coated ; m.s. zinc plated control flat rod Accessories ref. to page #
1.CAM ref. to page 9A-001
Version A (Cam control) Version C (3P.rod control)
Black textured powder coated Remark
1108-1001-20 Black textured powder coated 1. Key different on request.
1108-3001-20 2. CH751 key code on request

1A-022
