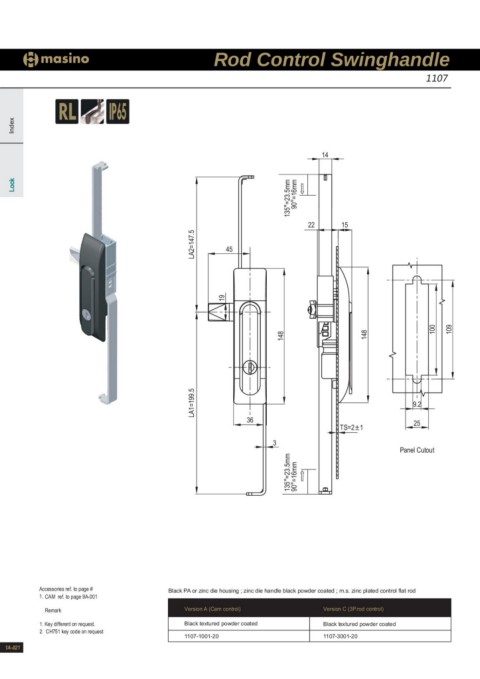

Index Rod Control Swinghandle
1107
Lock 9130°5°=1=623m.5mmm 148 1359°0=°2=31.65mmmm
14
LA2=147.5
22 15
45

19

148
100
109

LA1=199.5 36 9.2
3 25
TS=2±1
Panel Cutout

Accessories ref. to page # Black PA or zinc die housing ; zinc die handle black powder coated ; m.s. zinc plated control flat rod
1. CAM ref. to page 9A-001
Version A (Cam control) Version C (3P.rod control)
Remark Black textured powder coated
1. Key different on request. 1107-1001-20 Black textured powder coated
2. CH751 key code on request 1107-3001-20

1A-021
