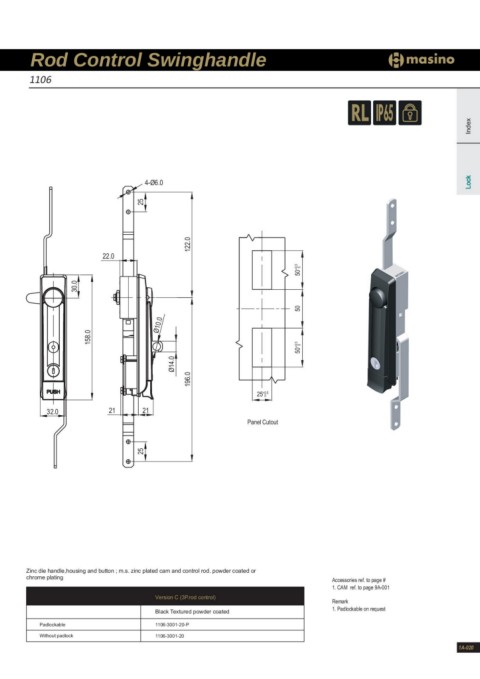

Rod Control Swinghandle Index
1106 Lock
4-Ø6.025
22.0 122.0
30.0 Ø10.0 50+00.5 50 50+00.5
158.0
Ø14.0
196.0
32.0 21 21 25+00.5
Panel Cutout
25
Zinc die handle,housing and button ; m.s. zinc plated cam and control rod. powder coated or Accessories ref. to page #
chrome plating 1. CAM ref. to page 9A-001
Remark
Version C (3P.rod control) 1. Padlockable on request
Black Textured powder coated
Padlockable
Without padlock 1106-3001-20-P
1106-3001-20
