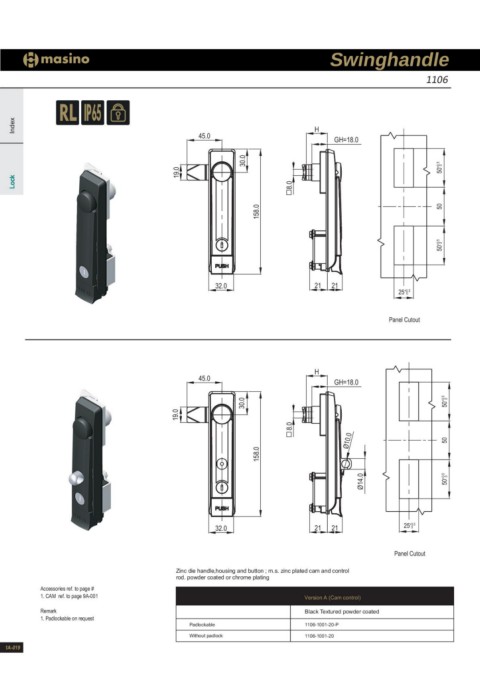

Swinghandle
1106

Index 45.0 H
GH=18.0

Lock 19.0
30.0

158.0
8.0

50+00.5 50 50+00.5

32.0 21 21 25+00.5
45.0 Panel Cutout

H
GH=18.0

19.0 30.0 50+00.5 50 50+00.5
158.0
Ø10.0
8.0

Ø14.0

32.0 21 21 25+00.5

Panel Cutout

Zinc die handle,housing and button ; m.s. zinc plated cam and control
rod. powder coated or chrome plating

Accessories ref. to page # Padlockable Version A (Cam control)
1. CAM ref. to page 9A-001 Without padlock Black Textured powder coated
Remark
1. Padlockable on request 1106-1001-20-P
1106-1001-20
1A-019
