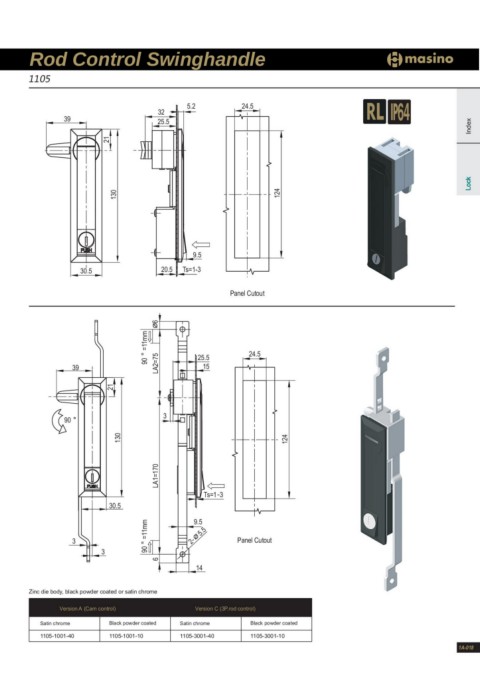

Rod Control Swinghandle

1105

32 5.2 24.5 64
25.5
39 Index

130 21 Lock
124

30.5 9.5
20.5 Ts=1-3
39
90 ° Panel Cutout

21 25.5 24.5
90 ° =11mm 15

LA2=75 6 3

130 124
LA1=170

Ts=1-3

30.5 90 ° =11mm 9.5 Panel Cutout
3 2- 5.5

3 9

14

Zinc die body, black powder coated or satin chrome

Version A (Cam control) Version C (3P.rod control)

Satin chrome Black powder coated Satin chrome Black powder coated
1105-1001-40 1105-1001-10 1105-3001-40 1105-3001-10
